Weller Zero Smog 4V — Extraction Unit

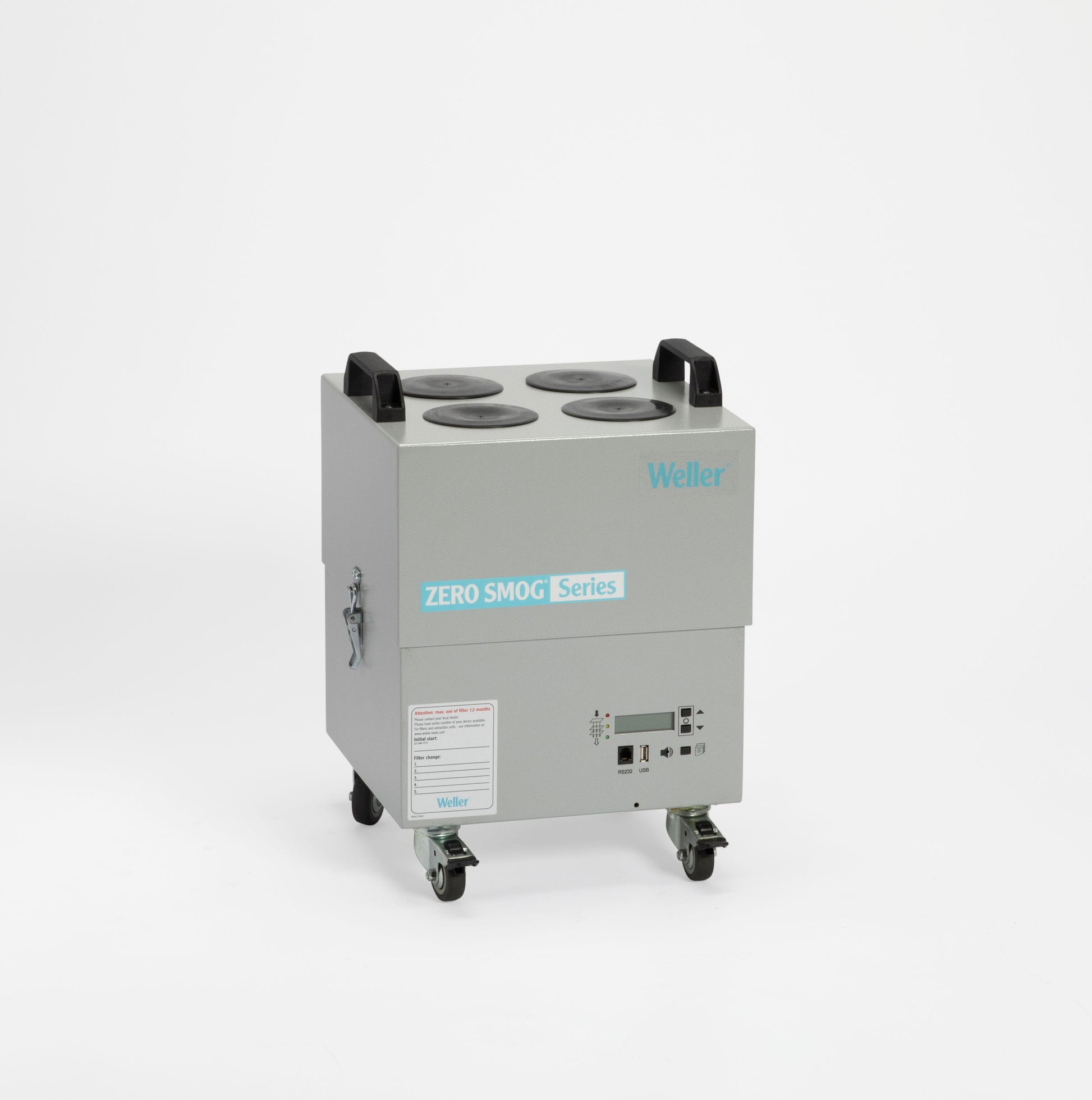

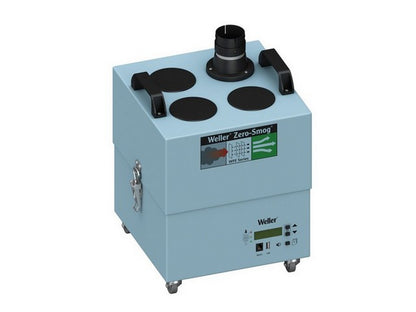

The Weller Zero Smog 4V (Art. No. T0053660699N) is an extraction unit for soldering and related applications. The unit provides a maximum airflow of 230 m³/h and is designed to remove smoke and pollutants associated with soldering processes.
Features and Control
The Zero Smog 4V features Constant Flow Control (CFC) for automatic regulation of airflow. Electronic filter control monitors the filter status and generates both optical and acoustic alarms when filter replacement is needed. The unit is equipped with a USB port for performance measurements and firmware updates; the data specification also mentions an RS232 port.
Typical Applications
The Weller Zero Smog 4V is specified for extraction in soldering and related applications, as indicated by the manufacturer.
Filter and Alarm System
The unit's filtration configuration includes an F7 fine dust pre-filter as well as a broad-band gas filter consisting of 50% activated carbon and 50% Chemisorb. The filter indication is displayed in colours (red/yellow/green) to show the contamination level, and an acoustic alarm warns of critical filter status.
Documentation
For detailed information on operation, maintenance, and interface functions, please refer to the manufacturer's manual:
Specifications
- Product: Weller Zero Smog 4V (Art. No. T0053660699N)
- Manufacturer: WELLER
- Max. airflow: 230 m³/h
- Pre-filter: F7 fine dust
- Broad-band gas filter: 50% activated carbon + 50% Chemisorb
- Constant flow control: Constant Flow Control (CFC)
- Filter control: Electronic with optical (red/yellow/green) and acoustic alarm
- Interfaces: USB port (for performance measurements/firmware updates) and RS232 port
- Workstation capacity: Can serve 1–4 workstations
