Product Overview

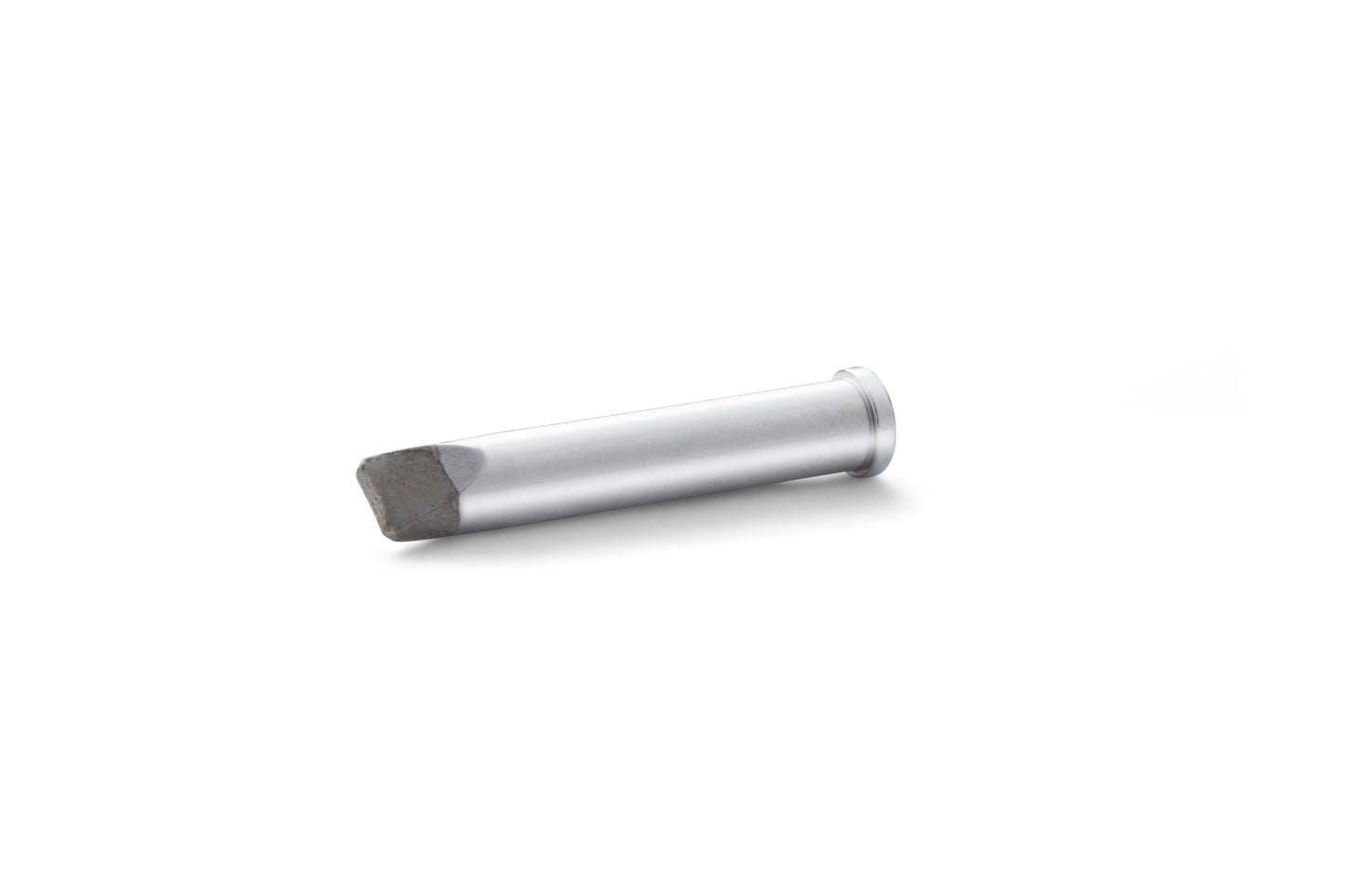

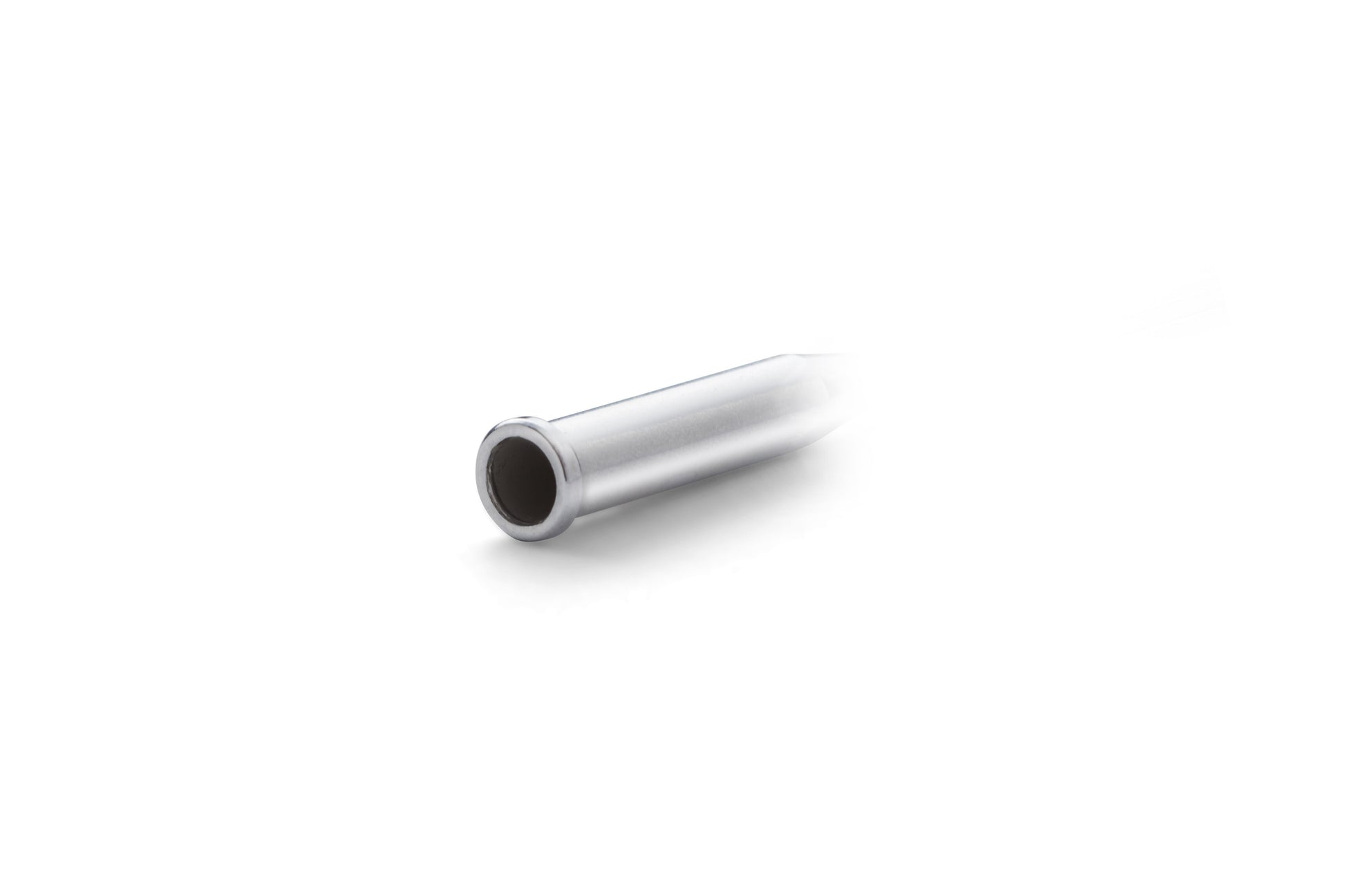

This Weller XT E soldering tip, product number T0054470799, is a chisel-shaped soldering tip designed for the XT Soldering Tips family. The product is specified as an HM XT tip with a diameter of 5.9 mm and a length of 1.3 in. The Weller T0054470799 is intended for use with WXP 120 / WP 120 soldering irons.Functional Features
- Chisel-shaped tip (sharp chamfered surface) with Ø 5.9 mm.
- Tip type: HM XT.
- Specified length: 1.3 in.
- Quantity per package: 1.
- Compatibility: XT Series tips for WXP 120 / WP 120 soldering irons.
Typical Applications
This tip is specified for "most difficult, high mass soldering jobs" according to the manufacturer's technical information. This indicates that the Weller T0054470799 is suitable for soldering tasks with high thermal mass, where maximum power and fast response are necessary.Documentation
For further technical details and manufacturer information, please refer to Weller's product documentation: See datasheet from the manufacturer.Specifications

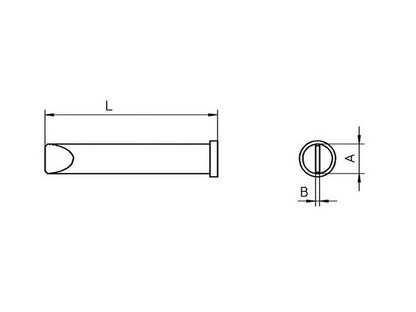

- Product Name: Weller XT E (Item No. T0054470799)
- Tip Type: Chisel
- Diameter: 5.9 mm
- Length: 1.3 in
- Tip Type: HM XT
- Product Family: XT Soldering Tips
- Compatibility: WXP 120 / WP 120
- Quantity per package: 1
- UPC: 037103231727
