ESD floor tile
Description

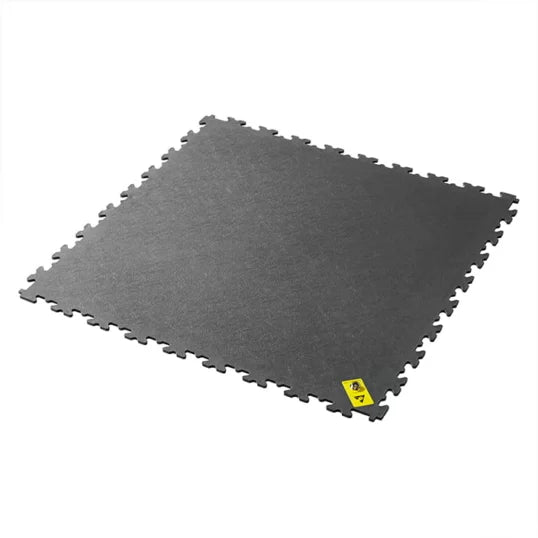

The X500 X-Joint ESD tile is a static-dissipative, interlocking floor tile from Ecotile, as specified in the provided technical documentation. The product is made of PVC with embedded steel/stainless steel fibres, which provides permanent ESD properties. The tile measures 497 mm × 497 mm and has a nominal thickness of 7.44 mm.
Function and installation

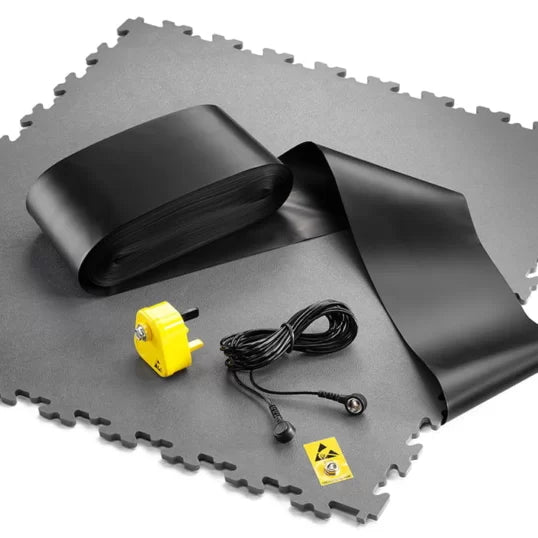

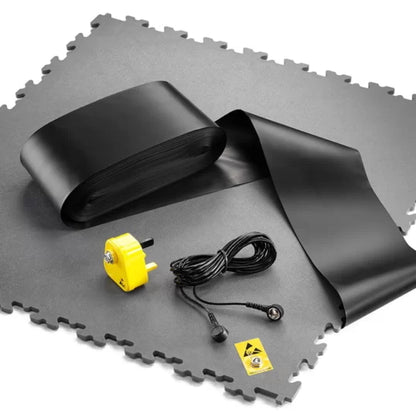

The X500 X-Joint ESD tile is designed to provide controlled surface resistance and safe dissipation of static charges. The datasheet indicates an average surface resistance of 1.46 × 10^6 Ω and an average resistance to ground of 9.3 × 10^5 Ω. Ecotile specifies that a studded earthing tile must be connected to ground, and the installation guide typically indicates the placement of an earthing tile approximately every 60–80 m². Ecotile supplies the studded earthing tile and associated earthing equipment as part of a complete ESD earthing system.
Technical reference
The technical documentation for the X500 X-Joint ESD tile is published by Ecotile and contains test results and standard specifications. For details on test methods and further technical values, please refer to the manufacturer's datasheet:
See datasheet from the manufacturer
Specifications
- Product: X500 X-Joint ESD tile
- Manufacturer/information in input: BJZ
- Dimensions: 497 mm × 497 mm ± 0.3 mm
- Thickness: 7.44 mm ± 0.3 mm
- Material: PVC with embedded steel/stainless-steel fibres
- Weight: 9.18 kgs/m²
- Surface resistance: 1.46 × 10^6 Ω (average measurement)
- Resistance to ground: 9.3 × 10^5 Ω (average measurement)
- Walking test: <100 V
- Static decay at 15% relative humidity: 0.01 s
- Colour: Dark Grey
- Warranty: 10 Years
- Expected lifespan: 25 Years +
- Standards/test compliance: BS EN 61340-5-1; IEC 61340-5-1; EN/ISO 61340/5; EN 1081; EN 1815; EN 6356

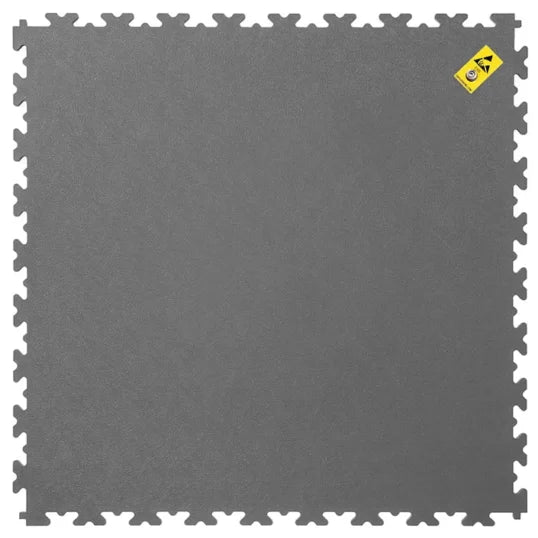

- Installation instructions: Studded earthing tile must be connected to ground; recommended placement approximately every 60–80 m²
