Angled Insulated Flat Receptacle

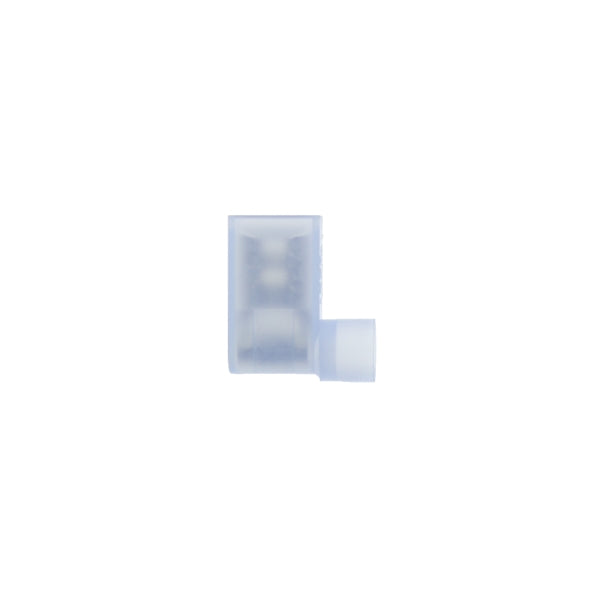

The Winkel Flachsteckhülsen 6,3x0,8 blau is an angled, insulated flat receptacle from EISENACHER, designed to reliably connect conductor ends with flat plug dimensions of 6.3×0.8 mm. The product is explicitly specified for conductor cross-sections of 1.5–2.5 mm² and is used where an angled flat plug is required.
Function and Construction
The receptacle is made with contact material of Ms (brass) with galvanic tin plating and insulation in PA 66. The specified geometric dimensions (l1, l2, d1) show the physical proportions for the connection and are given as l1 = 16.0 mm, l2 = 14.8 mm, and d1 = 5.0 mm. The contact size is stated as 6.3×0.8 mm, which matches the standard flat plug dimensioning on the product sheet.
Technical Reference
- Contact size: 6.3×0.8 mm
- Conductor area: 1.5–2.5 mm²
- Contact material: Ms (brass) with galvanic tin plating
- Insulation material: PA 66
The product is delivered in packaging units of 1,000 pcs. and is registered with EAN 4251364509418. The manufacturer's documentation includes two PDF files named F614638.pdf and F614638N.pdf; one of these datasheets is available here:
Documentation
See datasheet from manufacturer
Specifications
- Manufacturer: EISENACHER
- Article number: F614638
- Product name: Winkel Flachsteckhülsen 6,3x0,8 blau
- Contact size: 6.3×0.8 mm
- Conductor area: 1.5–2.5 mm²
- l1: 16.0 mm
- l2: 14.8 mm
- d1: 5.0 mm
- Contact material: Ms (brass) with galvanic tin plating
- Insulation material: PA 66
- Packaging unit: 1,000 pcs.
- EAN: 4251364509418
