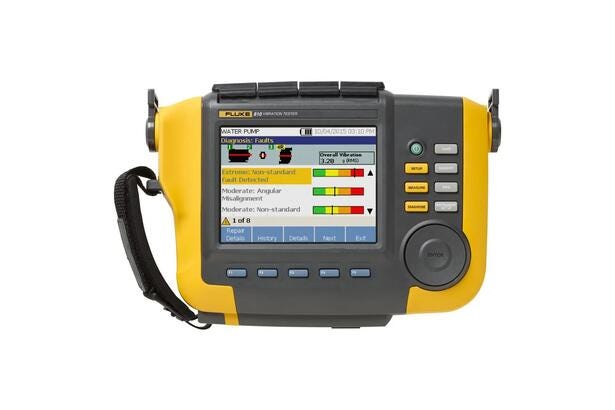

  • Fluke 810 vibrationsanalysator med skærm, der viser fejldiagnostik til vandpumpe

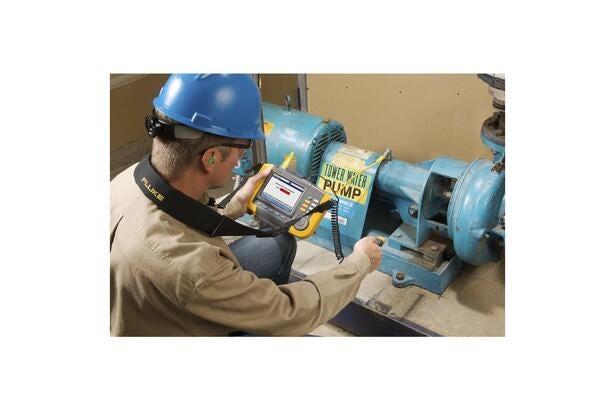

  • Mand med hjelm anvender en håndholdt vibrationsanalysator på en industripumpe.

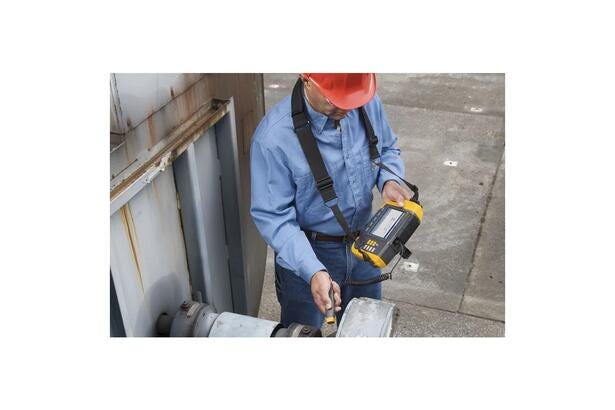

  • Ingeniør måler vibrationer på udstyr med Fluke 810 analysator for vedligeholdelse
1 4

Vibration analyzer

Vibration analyzer

Fluke

FLUKE-810

In stock

View full details

You are not logged in and therefore do not see your prices.

Have an account and login
Don't have an account?Have an account

Product Description

This handheld vibration tester, the Fluke 810 Vibration Tester, is a diagnostic tool for mechanical maintenance. The device performs fault diagnostics and identifies specific mechanical faults such as unbalance, loose components, misalignment, and bearing-related failures. The Fluke 810 Vibration Tester provides both overall vibration levels and spectra for assessing machine condition.

Features and Performance

  • Tri-axial accelerometer with 100 mV/g sensitivity and 80 g peak acceleration range.
  • Supports machine rotation speeds from 200 rpm to 12,000 rpm.
  • Usable frequency band from 5 Hz to 20 kHz.
  • 2 GB internal memory plus SD micro-card slot for additional storage.
  • Mini-B USB PC connection (USB 2.0) and extended Viewer PC software for reporting and data management.
  • Built-in laser tachometer for accurate measurement of rotational speed.
  • Battery: 14.8 V lithium-ion with approximately eight hours of operating time under normal conditions.

Documentation

See the manufacturer's technical specifications and additional product information in the datasheet below: See datasheet from the manufacturer

Typical Applications

This device is used for analysis and diagnosis of specific machine types as stated in the manufacturer's documentation:
  • Motors, fans, and blowers
  • Belt and chain drives
  • Gearboxes and couplings
  • Centrifugal pumps, piston pumps, screw pumps, and propeller pumps
  • Compressors (piston and screw) and closed coupled machines
  • Spindles

Diagnosis and Reporting

The Fluke 810 provides plaintext diagnostics indicating fault type and severity (slight to extreme levels), cited peaks, and spectral analyses. The device offers repair recommendations and context-sensitive on-screen help. Viewer PC software extends capabilities to generate diagnosed reports and store machine setups.

Specifications

  • Product Name: Fluke 810 Vibration Tester
  • Manufacturer: FLUKE
  • Machine rotation speed: 200 rpm to 12,000 rpm
  • Usable frequency band: 5 Hz to 20 kHz
  • Accelerometer: Tri-axial, sensitivity 100 mV/g (±5 %, 25 °C), 80 g peak
  • Internal memory: 2 GB + SD micro slot (additional 2 GB possible)
  • PC connection: Mini-B USB (2.0)
  • Battery: 14.8 V lithium-ion, approx. 8 hours operating time under normal conditions
