STAUBLI 18.3017

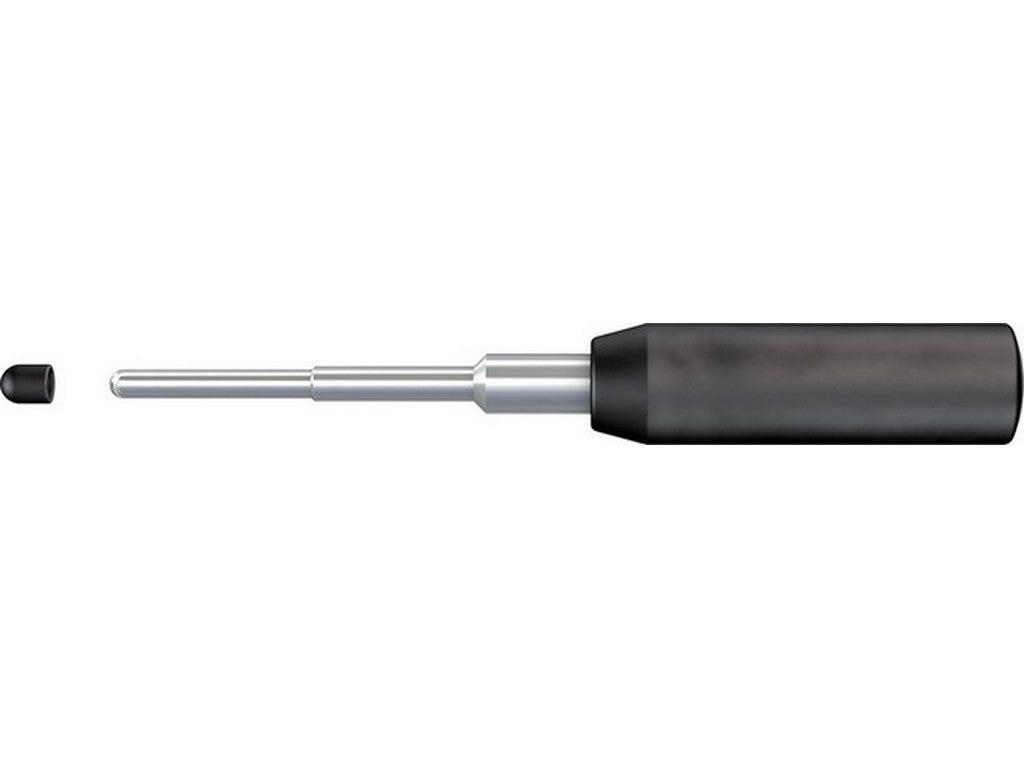

STAUBLI 18.3017 is an extraction tool for socket contacts, i.e., female contacts, in the Stäubli WeldFix 6 system. It is used when a contact needs to be pushed out of the contact carrier again without damaging the surrounding components. In practice, it is a tool for disassembly and service, not for general assembly.
The tool is linked to contacts with a nominal diameter of 6 mm. It therefore fits into work with the larger WeldFix 6 connections, where correct handling of the contacts is important if the connection is to function stably over time.
Stäubli also issues a clear warning about using the correct insertion and extraction tools. This is precisely why the MBA-WZ6 exists: so that the contact can be removed in a controlled manner when a connection needs to be rebuilt, maintained, or checked.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 18.3017
- Tool type: MBA-WZ6
- Function: Extraction tool for socket contacts
- Contact size: 6 mm nominal diameter
- Used in Stäubli WeldFix 6 documentation
