Product Description

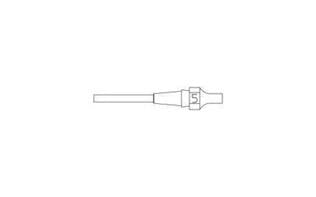

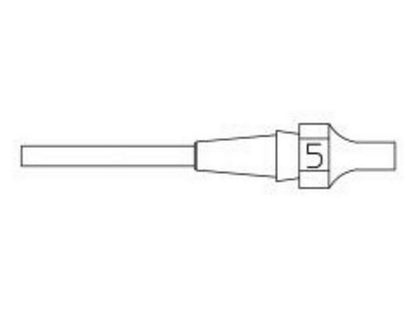

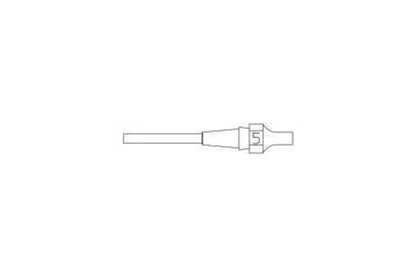

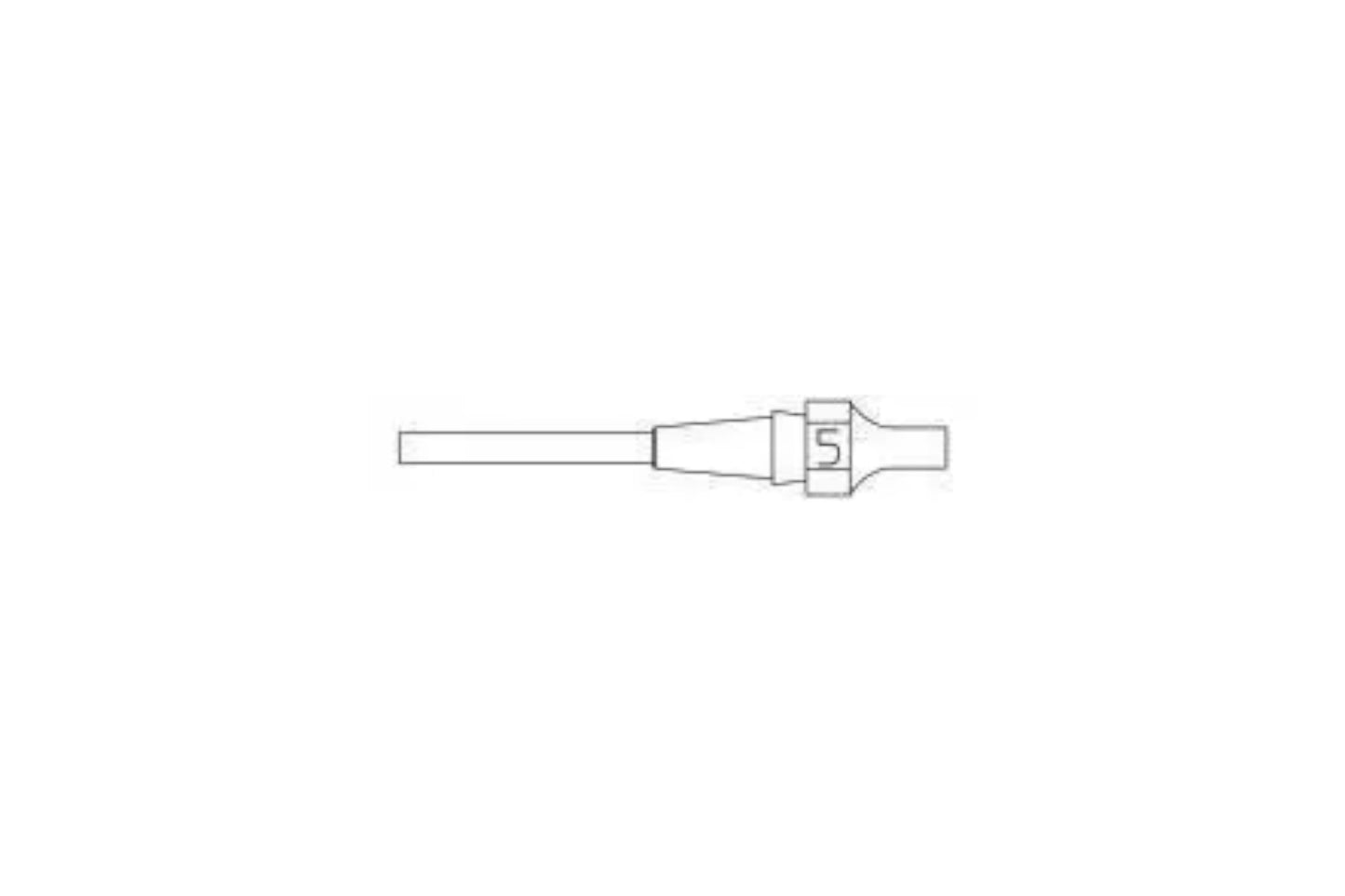

This Desoldering nozzle from WELLER is a replacement nozzle for the XDS family of suction/desoldering tips. The nozzle is designed to be heated so that the solder melts, after which, upon activation of a vacuum, it is sucked through an integrated tube and fed into a collector, as described by the manufacturer.Function and Construction
- Designed for removing solder from the solder joint by heating and subsequent vacuum extraction.
- Suitable for tip range: XDS (specified as Tip Range XDS).
- Specified as a Desoldering Nozzle in the manufacturer's product text.
Documentation
The product's official datasheet is available from the manufacturer:
See datasheet from the manufacturer
Typical Applications
Based on the manufacturer's description, the Desoldering nozzle is used to remove molten solder from the solder joint by heating and simultaneously vacuum extracting the liquid solder material through an integrated tube to a collector. This is the direct application as stated in the manufacturer's text.
Specifications
- Manufacturer: WELLER
- Item No.: T0051325499
- Product Family: XDS Suction Nozzle Soldering Tips
- Tip Range: XDS
- Tip Shape: Desoldering Nozzle
- Internal diameter (Inside Ø): 1.8 mm
- External diameter (Outer Ø): 3.3 mm
- Nozzle length: 10.5 mm
- Quantity Per Package: 1
- UPC: 037103263209
