Product Overview

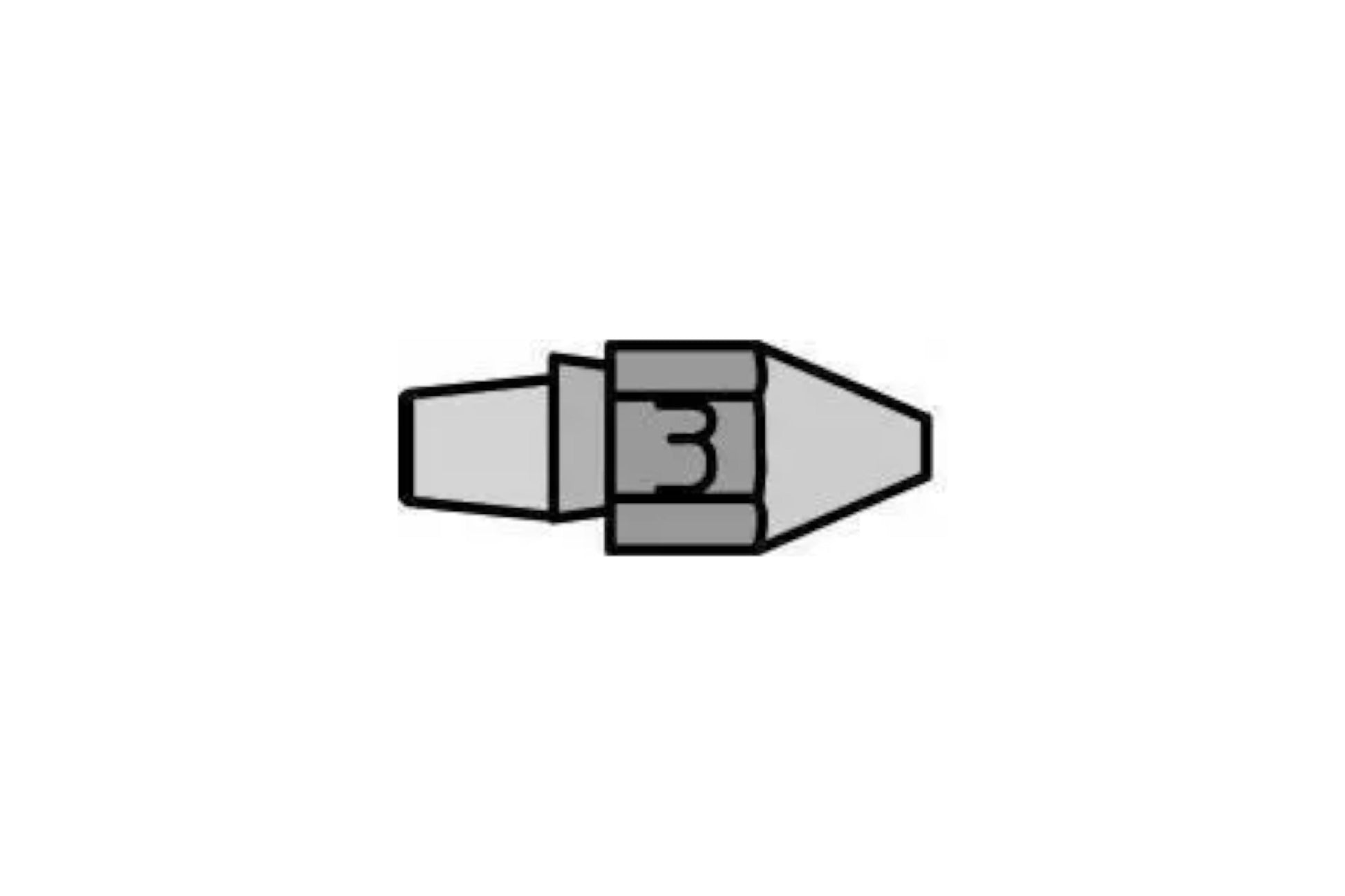

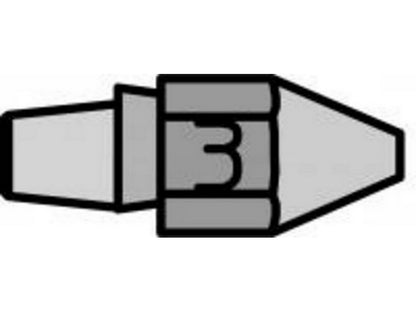

This is a desoldering nozzle: DX 113HM from WELLER (Item No. T0051315099). The primary function of the nozzle is to heat and remove solder using heat and vacuum. The DX 113HM comes with a threadless fixture system and is designed to work with specific Weller desoldering stations.
Design and Function
The DX 113HM is designed to melt solder by heating the nozzle, after which the molten solder is sucked out via an integrated tube into a collection container using a vacuum. The design indicates improved thermal transfer. The product is stated to be ESD safe.
Documentation
Details and technical data are provided by the manufacturer. See manufacturer's datasheet
Typical Applications
- Used with DSX 80 desoldering iron (stated compatibility).
- Used with DXV 80 desoldering iron (stated compatibility).
- Used to melt and remove solder from a solder joint, where vacuum draws the molten solder into a collection container.
Further Information
- Fixture System: Threadless fixture system (stated by manufacturer).
- Pack Size: Supplied in packs of 10.
- Product Family: DX Suction Nozzle Soldering Tips (stated by manufacturer).
Specifications
- Product Name: DX 113HM (Item No: T0051315099)
- Compatibility: DSX 80, DXV 80
- Outer Diameter (A): 2.50 mm
- Inner Diameter (I): 1.20 mm
- Length (D / Nozzle Length): 25.0 mm
- ESD Safe: Yes
- Quantity per pack: 10
- UPC: 037103225283
- Product Family: DX Suction Nozzle Soldering Tips
- Function: Heated to melt solder; vacuum extraction via integrated tube to collector
- Fixture System: Threadless fixture system
