Top Gun 3 — Ionizing Air Gun

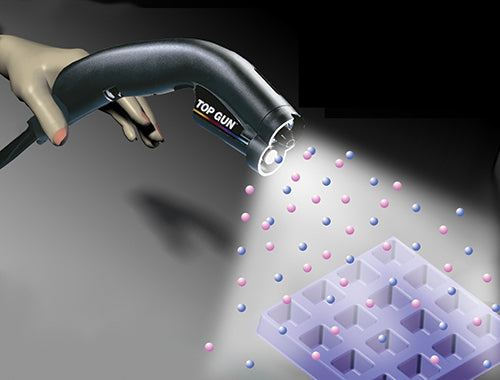

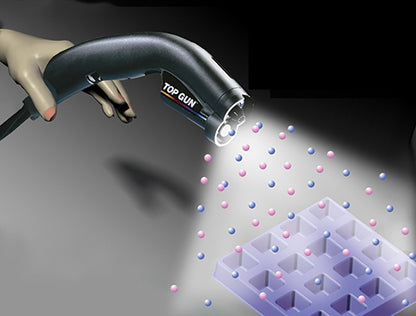

The Top Gun 3 is an ionizing air gun designed for targeted blow-off and static elimination. The unit is electrically balanced to 0±15V and combines high blow-off force with integrated filtration and adjustable airflow for precise local cleaning.
Features
- Electrical balance 0±15V
- Discharge times: 1.3 s at 6" (30 psi) and 0.5 s at 2" (60 psi)
- Built-in replaceable filter nozzle, 0.01 micron
- Flow control for adjustable air volume
- Two-level LED as indicator for power and ionization
- Optional optical sensor (adjustable range 1–30"), as well as selectable Sidekick hands-free stand with foot pedal
- Available air hose lengths: 5 ft, 7 ft, and 14 ft depending on model
Documentation
Technical details and model variants are available in the manufacturer's datasheet.
Typical Applications
- Medical device manufacturing and packaging
- Precision parts assembly
- Particulate removal in optics
- Cleaning the glass or molded parts before finishing
- Cleaning thermo‑formed trays
Specifications
- Product: Top Gun 3, manufacturer part number 4012206-01
- Function: Ionizing air gun for targeted blow-off and static elimination
- Balance: 0±15V
- Discharge times: 1.3 s @ 6" (15.2 cm), 30 psi; 0.5 s @ 2" (5.08 cm), 60 psi
- Input voltage: 120 VAC, 60 Hz, 0.2 A and 230 VAC, 50 Hz, 0.1 A
- Filter: 0.01 micron, replaceable
- Air supply: Clean Dry Air (CDA) or nitrogen; max input 100 psi
- Flow: 2.4 scfm @ 30 psi; 4.6 scfm @ 60 psi; 7.4 scfm @ 100 psi
- Blow-off force: 0.4 lb @ 100 psi, 2" target, 3" from gun
- Air hose: 5', 7' or 14' depending on model

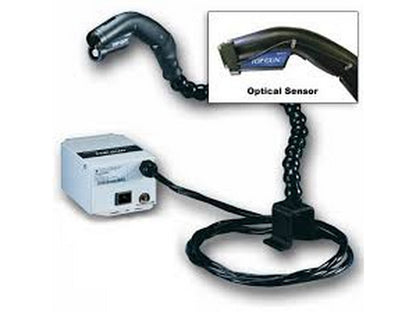

- Optional optical sensor: adjustable range 1–30"

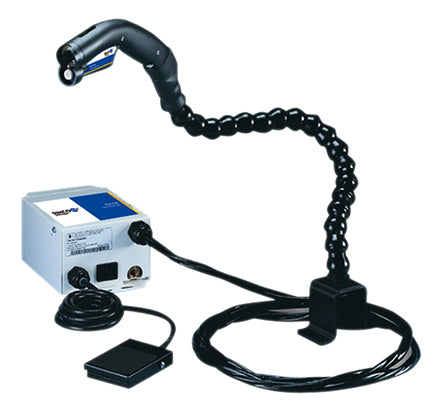

- Sidekick: selectable hands-free stand with foot pedal (available as a configuration)
- Sound level: 76 dBA @ 30 psi; 89 dBA @ 60 psi; 97 dBA @ 100 psi (measured 24" from nozzle)
- Ozone: 0.001 ppm (measured 18" from gun at 15 psi)
- Cleanroom class: ISO 14644‑1 Class 5
- Operating environment: 32–104°F (0–40°C); 30–60% RH, non‑condensing
- Weight: Gun 0.41 lb (0.185 kg); air hose 0.08 lb/ft (0.115 kg/m)
- Warranty: 2 year limited warranty
