This handheld thermal camera from Fluke

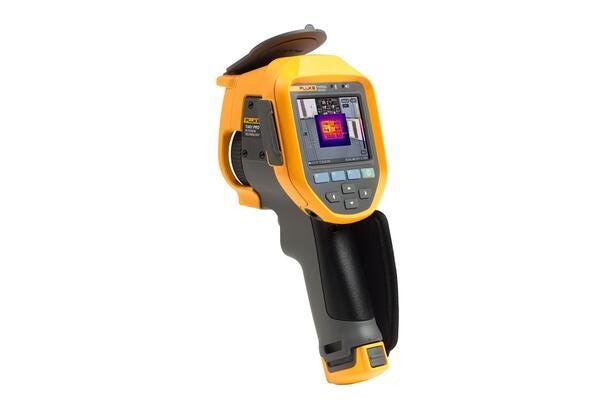

The Fluke Ti401 PRO is a handheld thermal camera (Part#: 5085041) with a 640 x 480 infrared detector and 60 Hz image refresh rate. The camera provides measurements in the range of –20 °C to +650 °C (–4 °F to +1,202 °F) with a thermal sensitivity of ≤0.075 °C (75 mK). The Fluke Ti401 PRO supports LaserSharp™ Auto Focus and IR-Fusion™ for blending visible and infrared images and features a 3.5” touchscreen with 640 x 480 resolution.Technical Overview
- Infrared resolution: 640 x 480 (307,200 pixels)
- Frame rate: 60 Hz
- LaserSharp™ Auto Focus
- IR-Fusion™ visible/infrared image blending
- 3.5" pipe-like touchscreen display, 640 x 480
- HDMI and USB connectivity
Documentation
For complete technical details and a full specification list, please refer to the manufacturer's datasheet:
Typical Applications
- Thermal inspections with image fusion capability between visible light and infrared (IR-Fusion™)
- Capture thermal images at both short and long distances using LaserSharp™ Auto Focus
- Edit and analyze image parameters directly on the camera, including emissivity and temperature alarms
Specifications
- Product Name: Fluke Ti401 PRO (Part#: 5085041)
- Infrared Resolution: 640 x 480
- Thermal Sensitivity (NETD): ≤ 0.075 °C (75 mK)
- Measurement Range: –20 °C to +650 °C (–4 °F to +1,202 °F)
- Frame Rate: 60 Hz
- Spatial Resolution (IFOV): 0.93 mRad (D:S 1065:1)
- Field of View (FOV): 34 °H x 24 °V
- Minimum Focus Distance: 15 cm
- Built-in Digital Camera (visible light): 5 MP
- Display: 3.5" touchscreen, 640 x 480
- Connections: HDMI, USB
- Battery: Two field-swappable lithium-ion smart battery packs (included); battery life 2–3 hours per battery
- Battery Charging Time: Approximately 2.5 hours
- Included Accessories: Two smart lithium-ion batteries, AC power supply and charger, HDMI cable, USB cable, 4 GB micro SD card
- Operating Temperature: -10 °C to +50 °C
- Storage Temperature: -20 °C to +50 °C (without batteries)
- Enclosure Rating: IEC 60529: IP54
- Weight (incl. battery): 1.04 kg
- Safety and EMC (stated in manufacturer documentation): IEC 61010-1; IEC 61326-1; CISPR 11; US FCC CFR 47 Part 15 Subpart B
- Recommended Calibration Interval: Two years
All information above has been verified in the manufacturer's documentation.
