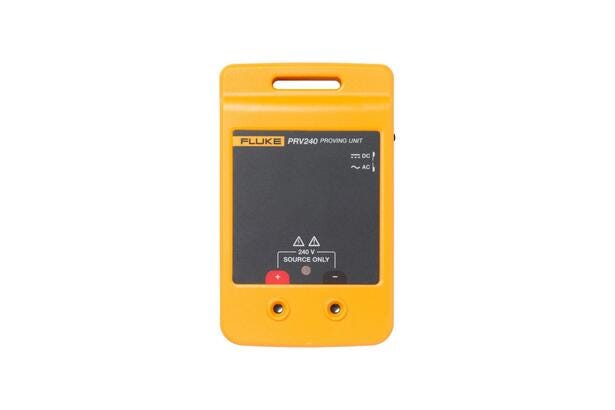

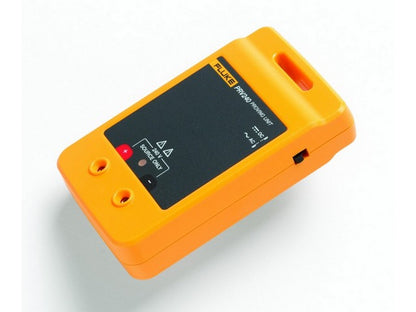

Test unit, battery powered.

Introduction

This portable proving unit, the Fluke PRV240 Proving Unit from FLUKE, is a pocket-sized, battery-powered voltage source intended for verifying the functionality of measuring instruments. The Fluke PRV240 provides both AC and DC voltage and indicates the presence of output voltage with a single LED, making the unit easy to use when checking test equipment before measurements.

Features

• Stable voltage source: delivers 240 V AC RMS or DC ±10% at ≥ 1 MΩ load.
• Compatibility: can be used with both high-impedance and low-impedance instruments (LoZ and HiZ). For LoZ >3 kΩ, the unit typically delivers approx. 60 V AC (min. 50 V AC RMS).
• Visual indicator: single LED that illuminates when output voltage is present.
• Power source: powered by four AA alkaline batteries (NEDA 24 A / IEC LR03).
• Safety design: output through recessed contacts that activate when test probes are inserted.

Typical Applications

The Fluke PRV240 is used to verify the function of electrical test equipment before and after a measurement, in accordance with the "Test Before Touch" (TBT) principle. The unit provides a known voltage source, which allows verification that a multimeter or other two-pole test instrument is functioning correctly without exposing the operator to live circuits.

Documentation

See the manufacturer's technical information and complete measurement specifications in the official datasheet: See datasheet from the manufacturer

Specifications

• Product name: Fluke PRV240 Proving Unit (Part#: 4566209)
• Output: 240 V AC RMS or DC ±10% at ≥ 1 MΩ
• LoZ >3 kΩ load: approx. 60 V AC typical, 50 V AC RMS minimum
• LED: illuminates when output voltage is present
• Battery: 4 × AA alkaline (NEDA 24 A / IEC LR03)
• Battery life: 5,000 test cycles (5 s duration) with >1 MΩ load; at least 300 test cycles with >3 kΩ load
• Operating temperature: -10 °C to +50 °C
• Operating humidity: 0 %–90 % (0 °C–35 °C); 0 %–70 % (35 °C–55 °C)
• Operating altitude: up to 2000 m
• Dimensions: 11.7 cm × 7.4 cm × 2.8 cm
• Weight: 0.23 kg (incl. batteries)
• Safety: IEC61010-1, IEC61010-2-030
• EMC: IEC 61326-1 (Portable EM environment); CISPR 11, Group 1, Class A
• Warranty: 1 year

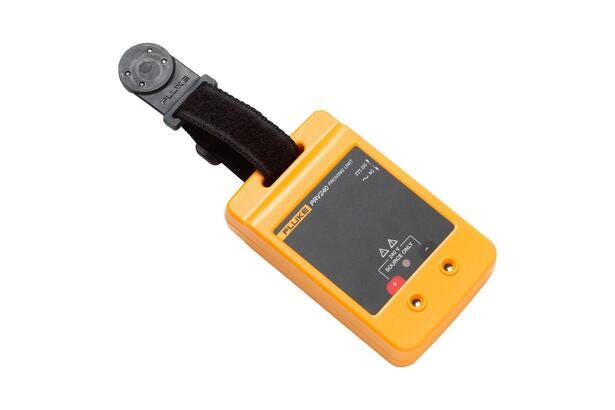

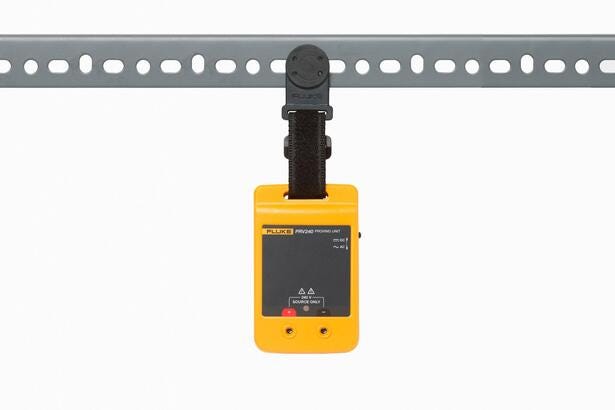

• Included: TPAK magnetic hanging strap, four AA batteries, instruction/quick reference sheet
