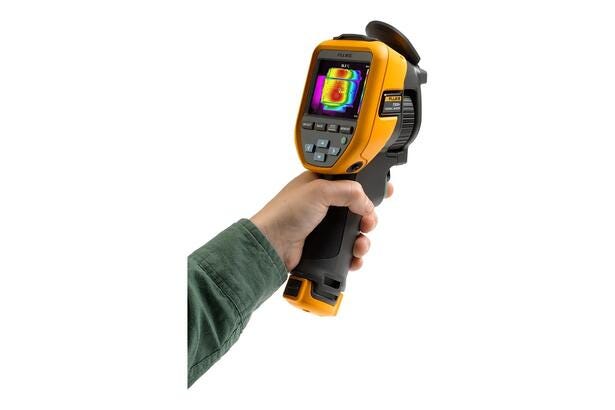

Fluke TiS55+
The Fluke TiS55+ is a handheld thermal camera for inspections where you want to see temperature differences on equipment and installations instead of just taking a single spot measurement. The camera provides an infrared image with 256 x 192 resolution and also has a built-in visible 5 MP camera, making it easier to put the thermal image into real-world context.
This is particularly practical in busy maintenance or inspection tasks where images and notes need to be saved and retrieved later. Here, IR-Fusion with both AutoBlend and Picture-in-Picture helps combine the thermal image with visible details. The camera also has a 3.5” touchscreen, making it quick to navigate through images and settings.
The TiS55+ is designed for field use. It is IP54-rated, can withstand drops from 2 meters, and comes with internal memory as well as SD card support. Focus is manual or fixed, and the minimum focusing distance is 0.15 m. Temperature measurement ranges from -20 °C to 550 °C.
Fluke has also considered documentation. You can save images with comment functions, and images can be organized in internal memory or on an SD card. This makes it easier to use the camera as part of planned inspections and not just as a quick check tool.
Typical applications
- Troubleshooting and inspection of electrical installations
- Inspection of mechanical equipment and components
- Planned maintenance rounds where images need to be saved and compared
Specifications
- Manufacturer: FLUKE
- MPN: 5160004
- GTIN/EAN: Not disclosed in verified data
- Infrared resolution: 256 x 192
- Display: 3.5” touchscreen
- IR-Fusion: AutoBlend and Picture-in-Picture (PIP)
- Built-in visible camera: up to 5 MP
- Temperature range: -20 °C to 550 °C
- Minimum focusing distance: 0.15 m
- Focus: manual and fixed focus
- Frame rate: 9 Hz or 27 Hz
- IP rating: IP54
- Drop test: withstands 2 m drop
- Internal memory: approx. 500 images
- External memory: SD card, minimum 4 GB
- Datasheet: See datasheet from the manufacturer
