Product Overview

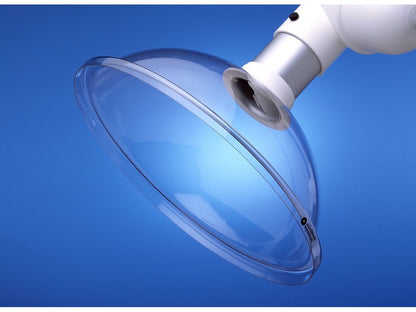

This round hood from Alsident, Alsident 1-7535-5, is a Ø385 mm round hood designed for Alsident System 75 extraction arms. The product is available in several materials and variants and includes a stub pipe for mounting on the System 75 arm. The Alsident 1-7535-5 is available with a white flange (suffix -5).Materials and Finishes
- Transparent PETG (resistant to solvents)
- Conductive polypropylene
- Chemical-resistant polypropylene (PP)
Documentation and product specifications are available from the manufacturer: See manufacturer's data sheet
Typical Applications
- Recommended for light fumes
- Recommended for gases
- Recommended for use over small open containers
Technical Notes
- Increased stability when moving the hood due to reinforced edge
- Improved efficiency in angled positions
- The connection pipe is part of the hoods for mounting on the System 75 arm
- Connection tube made of anodized aluminum with specified surface: 10 μ
- The transparent PETG version improves visibility of the work area
Specifications
- Manufacturer: Alsident
- Item number: 1-7535-5
- Product type: Round hood for extraction arm (System 75)
- Diameter: Ø385 mm
- Material variants: Transparent PETG; conductive polypropylene; chemical-resistant PP
- Flange colors: white (-5) or red (-4)
- Includes stub pipe for connection to System 75
- Connection tube: anodized aluminum - surface 10 μ
- Recommended use: light fumes, gases, over small open containers
