Product Overview

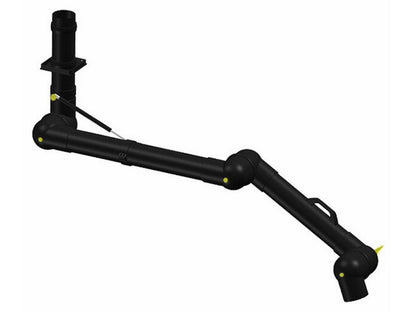

This wall/ceiling-mounted extraction arm from ALSIDENT is part of the System 100 Antistatic (AS) series and is listed as product number 100-5545-3-6 in the manufacturer's product overview. 100-5545-3-6 is specified as a 3-joint wall/ceiling variant and is part of the System 100 family with antistatic and ATEX-compliant properties.Construction and Function
- The extraction arm is designed for wall/ceiling mounting (3-joint model).
- System 100 has an external pipe diameter of Ø100 mm.
- System 100 Antistatic (AS) comes with grounding options, including an optional 1 MΩ ESD ground connection.
- All O-rings are conductive and maintenance-free; pipes and joints are made of conductive, durable, and chemical-resistant polypropylene (PP).
- The arms have an integrated damper which, when open, lies outside the flow path to maintain maximum airflow.
- Mounting parts such as threaded rods, internal springs, and thumb springs are made of acid-resistant stainless steel (AISI 316L); POP® rivets in AISI 316L.
- Units can be disassembled without tools for cleaning.
Documentation
For detailed technical information and official data, please refer to the manufacturer's data sheet:
View data sheet from manufacturer
Specifications
- Manufacturer: ALSIDENT
- Product number: 100-5545-3-6
- Product series: System 100 Antistatic (AS)
- Mounting: Wall/ceiling, 3-joint variant
- Working range (System 100): 795–2130 mm (3-joint wall/ceiling variation includes 1185 mm in its working range)
- External pipe diameter: Ø100 mm
- Recommended airflow: 140–400 m³/h
- Material: Conductive, durable, chemical-resistant PP (pipes and joints)
- O-rings: Conductive, maintenance-free
- Corrosion-resistant components: AISI 316L for threads, springs, thumb springs, and POP® rivets
- Approvals: IEC 61340-5-1 (ESD) and EN 80079-36:2016 / EN 80079-37:2016 (ATEX) – marked Ex II 1 GD
- Grounding: Equipped with grounding wire for EX areas; 1 MΩ ESD grounding wire included for ESD mounting
- Accessory option: Hoods can be supplied with protective mesh as an optional extra
- All components are RoHS compliant
