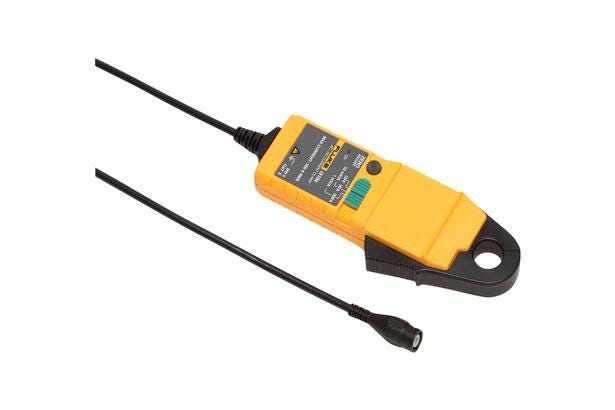

Fluke i310s Current Clamp
The Fluke i310s is a current clamp for measuring both AC and DC current without interrupting the circuit. It is used with oscilloscopes and other measuring instruments when you want to feed a current signal into the instrument in a safe and practical way. It is precisely the type of tool you choose when measuring current on conductors where you do not want to break the connection.
The Hall effect principle makes it suitable for both AC and DC current. Here you get two measuring ranges for AC and two for DC, so it can be used for both smaller and larger currents within its intended range. With a maximum conductor diameter of 19 mm, it fits many common conductors in service and test work.
The output is equipped with a BNC safety connector, and a 4 mm safety adapter is included. This makes it easy to connect to equipment that needs to receive the measurement signal. The 2-meter long cable provides some freedom when the measurement needs to be placed in a real setup environment.
It is powered by a 9 V alkaline battery and is therefore a self-contained measurement probe that can be taken directly to the task. It is a compact current probe for tasks where you need to observe current flows or make controlled measurements on both AC and DC.
Specifications
- Hall effect current clamp for AC and DC measurement
- Current ranges: 30 A and 300 A AC RMS as well as ±45 A and 450 A DC
- BNC safety output
- 4 mm safety adapter included
- 2 m cable
- Maximum conductor diameter: 19 mm
- Operating voltage: 300 V AC rms or DC
- Power supply: 9 V alkaline battery
- Operating time: approx. 30 hours
- Weight: 250 g
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
