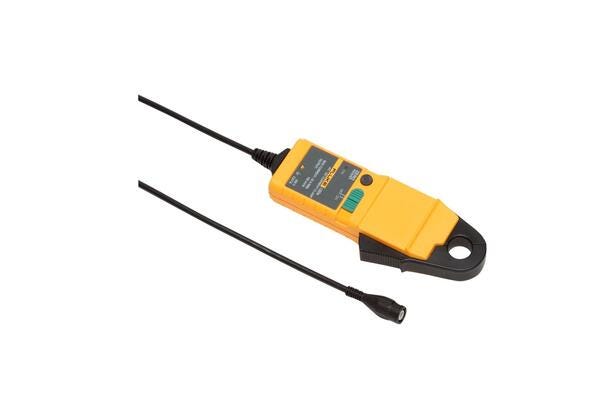

AC/DC Current Clamp – Fluke i30s
Function and Key Features
The Fluke i30s is an AC/DC current clamp based on Hall Effect technology for non-invasive measurement of both DC and AC currents. The device provides a BNC output for connection to oscilloscopes and other recording instruments, as well as a manual zero adjustment knob.
- Current Type: AC and DC (Hall Effect)
- BNC output, supplied with safety adapter for 4 mm plugs
- Manual output zero via thumbwheel
Documentation: See datasheet from the manufacturer
Typical Applications
The Fluke i30s can be used with oscilloscopes and other suitable recording instruments for precise, non-invasive current measurement. This application is stated in the manufacturer's product information and datasheet.
Specifications
- Product: Fluke i30s
- Technology: Hall Effect
- Specified Current Range: 30 mA to 30 A DC; 30 mA to 20 A AC rms
- Usable Current Range: 5 mA to 30 A DC; 30 mA to 20 A AC rms
- Output Sensitivity: 100 mV/A
- Frequency Range: DC to 100 kHz (−0.5 dB)
- Accuracy (at +25 °C): DC ±1% of reading ±2 mA; AC ±0.5 dB of reading ±2 mA
- Resolution: ±1 mA
- Maximum Conductor Diameter: 19 mm
- Phase Shift below 1 kHz: < 2°
- Output Connection: Safety BNC
- Load Impedance: > 100 kΩ, ≤ 100 pF
- Power Supply: 9 V alkaline battery (IEC 6LR61), approx. 30 hours operation, low battery indication
- Safety Rating: IEC CAT III 300 V
- Cable Length: 2 m
- Dimensions: 183 mm x 71 mm x 25 mm
- Weight: 250 g
- Operating Temperature: 0 °C to +50 °C
- Storage Temperature (battery removed): −20 °C to +85 °C
- Operating Humidity: 15 % to 85 % (non-condensing)
