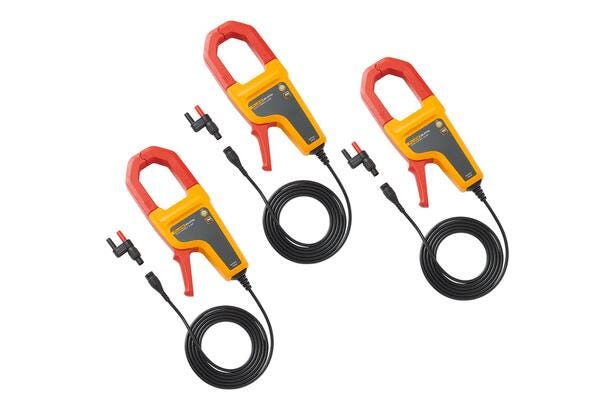

AC/DC Open-Jaw Current Clamp — Fluke 80i-2010s
The Fluke 80i-2010s is an AC/DC open-jaw current clamp from FLUKE designed for direct measurement of high currents on single conductors. The product measures up to 2000 A AC rms and ±2000 A DC and provides an analog output with a sensitivity of 1 mV/A.
Technical Description
The Fluke 80i-2010s has a stated accuracy of ±0.8% of reading ±0.2% of range for the specified operating bandwidth. The maximum conductor diameter is 52.0 mm and the maximum jaw opening is 81.5 mm. The unit's output is provided via a 1.5 m (60 in) shielded coaxial cable with a BNC connector. The current clamp is powered by 2 × AA batteries. The operating accuracy applies within the bandwidth DC to 400 Hz, and the product has an IP40 enclosure rating.
Features
- Measurement range: up to 2000 A AC rms and ±2000 A DC.
- Output sensitivity: 1 mV/A.
- Accuracy: ±0.8% of reading ±0.2% of range.
- Max conductor diameter: 52.0 mm; max jaw opening: 81.5 mm.
- Output cable: 1.5 m shielded coaxial cable with BNC connector.
- Power supply: 2 × AA batteries.
- Operating bandwidth for accuracy: DC to 400 Hz.
- Enclosure rating: IP40.
Source
Information in this description is based on the manufacturer's product page for the Fluke 80i-2010s (FLUKE).
Specifications
- Product: Fluke 80i-2010s.
- Manufacturer: FLUKE.
- Manufacturer's product number (MPN / SKU): 5125579.
- Type: AC/DC open-jaw current clamp.
- Measurement range: up to 2000 A AC rms and ±2000 A DC.
- Output sensitivity: 1 mV/A.
- Accuracy: ±0.8% of reading ±0.2% of range.
- Max. conductor diameter: 52.0 mm.
- Max. jaw opening: 81.5 mm.
- Output cable: 1.5 m (60 in) shielded coaxial cable with BNC connector.
- Power supply: 2 × AA batteries.
- Operating bandwidth (accuracy): DC to 400 Hz.
- Enclosure rating: IP40.
