Product Overview

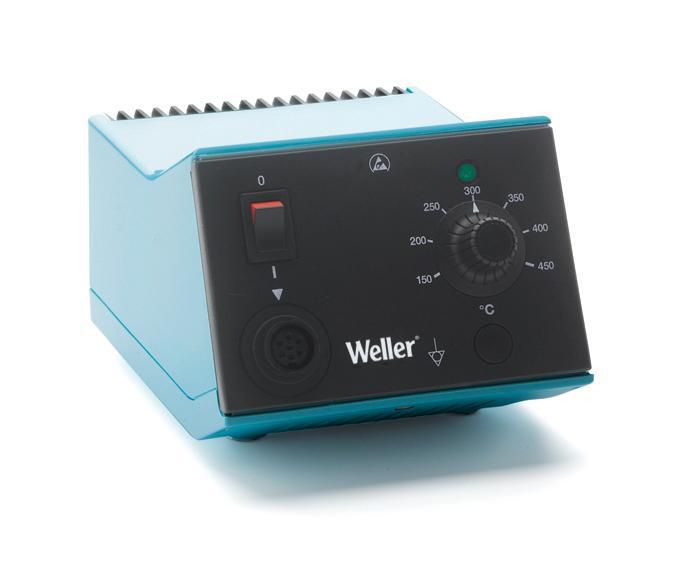

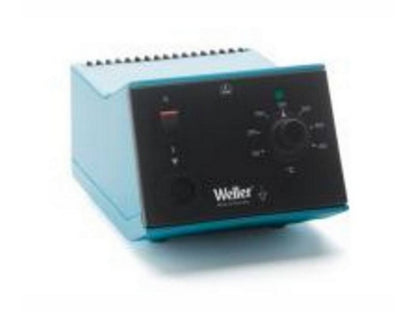

The Weller PU 81 (Art.-Nr. T0053252699N) is a single-channel analog power supply unit for Weller WS series soldering stations. The unit is designed for 230 V mains and is specified with a power consumption of 95 W. The Weller PU 81 is ESD-safe and offers a potential equalization socket for grounding.Technical Description
- Channels: 1 (single-channel analog unit)
- Rated mains voltage: 230 V
- Rated power: 95 W (stated in manufacturer material)
- ESD protection: Yes (ESD-safe)
- Potential equalization: Yes (equipotential/grounding plug)
- Temperature range: 150 °C to 450 °C
- Temperature accuracy: ±9 °C
- Physical dimensions (L x W x H): 170 x 118 x 102 mm
- Catalog weight: 1.89 kg
- Manufacturer article number: T0053252699N
Typical Applications
The Weller PU 81 is used as a power supply unit for WS series soldering stations. The unit delivers the specified heating power and temperature control for the connected WS soldering iron and provides ESD protection as well as the option for potential equalization via the built-in socket.Additional Information
Information in this description is taken from the manufacturer's product information and brief product text provided by Weller. The product's function and technical values in this text are only the data explicitly stated in the verified sources.Specifications
- Product: Weller PU 81 (Art.-Nr. T0053252699N)
- Function: Single-channel analog power supply unit for WS series soldering stations
- Power: 95 W
- Mains voltage: 230 V
- Temperature range: 150 °C – 450 °C
- Temperature accuracy: ±9 °C
- Potential equalization: Yes (grounding plug)
- ESD-safe: Yes
- Dimensions (L x W x H): 170 x 118 x 102 mm
- Weight (catalog): 1.89 kg
