Three-channel DC power supply

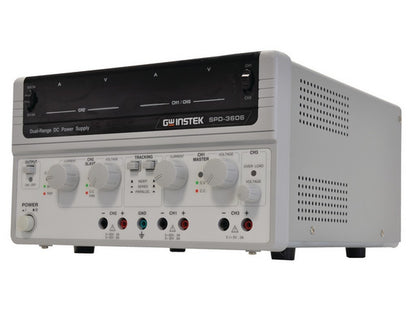

The SPD-3606 is a three-channel DC power supply from GW-INSTEK with a total output capacity of 375 W. The unit provides two main channels with dual-range output and a small adjustable channel for low-voltage needs. The SPD-3606 is designed for applications where separate, isolated outputs and flexible combinations of voltage and current are required.
Functionality and control
- CH1 and CH2 can be selected between 30 V/6 A or 60 V/3 A per channel.
- CH3 is adjustable from 0.1 V to 5 V with up to 3 A.
- CH1 and CH2 support series and parallel tracking, allowing combined master outputs of 30 V/12 A, 60 V/6 A, or 120 V/3 A.
- Output can be switched on/off manually or via remote control (Remote Control Output On/Off).
Protection and operation
The SPD-3606 includes several verified protection functions: over-voltage protection (OVP), over-temperature protection (OTP), reverse polarity protection, and CH3 overload protection. The unit has automatic AC selector for 115 V/230 V input.
Details and complete technical information can be found in the manufacturer's datasheet:
See datasheet from the manufacturer
Specifications
- Total output capacity: 375 W
- Three independent, isolated outputs
- CH1/CH2: Dual-range 30 V/6 A or 60 V/3 A per channel
- CH3: Adjustable 0.1 V – 5 V / 3 A
- Series/parallel tracking for CH1 & CH2: 30 V/12 A, 60 V/6 A or 120 V/3 A
- Over-voltage protection (OVP)
- Over-temperature protection (OTP)
- Reverse polarity protection and CH3 overload protection
- Remote control output On/Off
- Automatic AC selection: 115 V / 230 V
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
