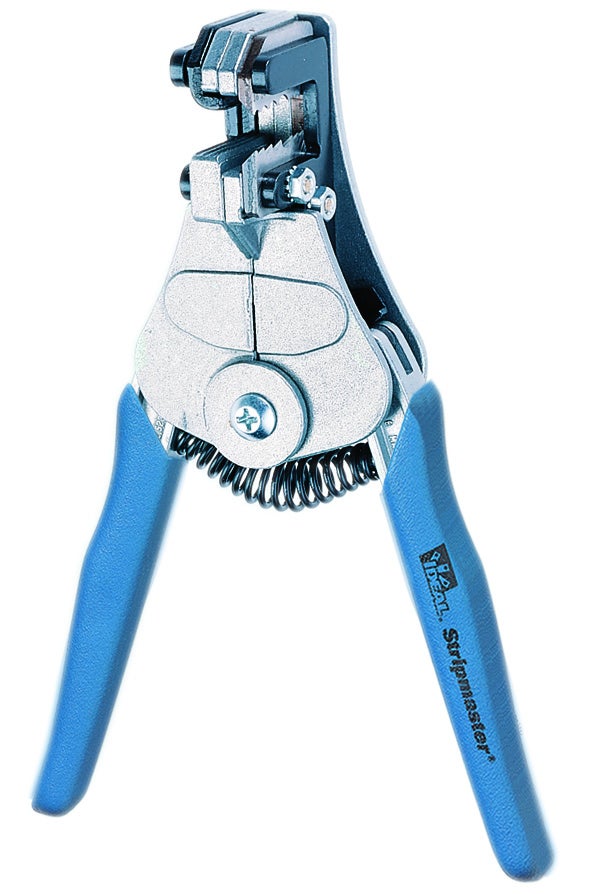

IDEAL-INDU WL12943 Stripmaster wire stripper
The WL12943 is a hand-held wire stripper for wires in the range AWG 26–16, corresponding to 0.13–1.31 mm². It is designed to remove insulation quickly and in a controlled manner in a single action, eliminating the need for multiple steps.
The design is simple yet well-thought-out. The full-size knife-shaped precision blades provide a clean stripping cut, and a gripper holds the wire in the center position while the jaws remain open, allowing the stripped conductor to be removed without damaging the end. This is particularly useful when working with many identical wires and the result needs to be consistent every time.
The tool can strip up to 7/8" (22 mm), and the molded zinc frame provides a robust construction suitable for daily use in workshops and production. It is not insulated, so it belongs to the category of general hand tools for electrical work where the user is in control of the work situation.
A 90-day limited warranty is included.
Typical applications
- Stripping installation and assembly wires within the specified wire range
- Series work where fast and consistent stripping is desired
- Electronics production and electrical assembly where the wire end must remain intact
Specifications
- Manufacturer: IDEAL-INDU
- MPN: WL12943
- Wire range: AWG 26–16
- Wire range: 0.13–1.31 mm²
- Max. strip length: 7/8" (22 mm)
- One-step, high-leverage squeeze action
- Full-size knife-shaped precision blades
- Gripper holds wire in center position
- Jaws held open for easy removal of wire without damaging the end
- Die-cast zinc frame
- Non-insulated
- Limited warranty: 90 days
- See manufacturer's datasheet
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
