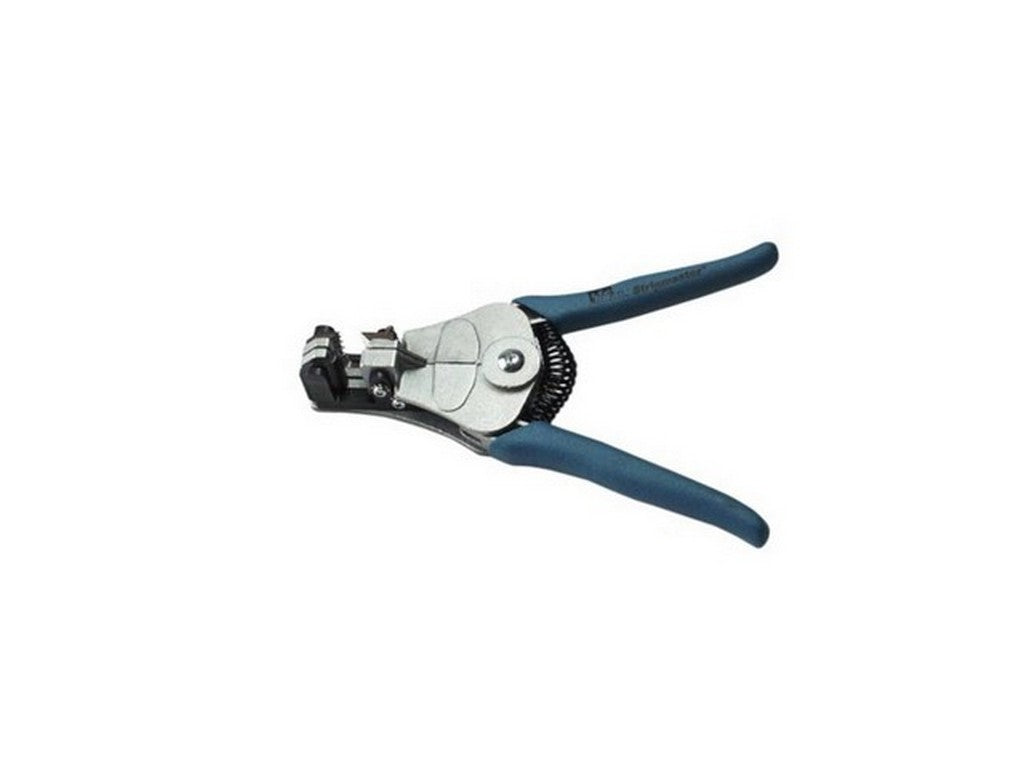

IDEAL Stripmaster metric wire stripper
The IDEAL Stripmaster metric wire stripper is a manual stripping tool for conductors in the range of 0.75–6.0 mm². It is designed to remove insulation in a controlled manner, allowing for quick work while keeping the conductor itself secure. The tool uses a high-leverage, single-step squeeze action, so stripping occurs with a single grip.
Inside the tool are precision-ground knife blades, and a gripper holds the wire in the centerline during operation. This helps to position the conductor correctly when removing insulation and ensures a more consistent workflow. The jaws are spring-loaded and automatically reopen after stripping, so the tool is ready for the next wire immediately.
The stripping length can reach up to 22 mm, and the frame is made of die-cast zinc. This is a robust construction for daily use in electrical and assembly work, where many wires of the same size often need to be processed.
Typical applications
- Stripping conductors in sizes 0.75–6.0 mm²
- Tasks where the wire needs to be held centered during stripping
- Assembly and electrical work involving repetitive stripping tasks
Specifications
- Manufacturer: IDEAL-INDU
- MPN: WL12941
- Model/SKU: 45-092-341
- Type: Metric wire stripper
- Conductor sizes: 0.75–6.0 mm²
- Stripping length: up to 22 mm
- Operation: single-step, high-leverage squeeze action
- Gripper: holds wire in centerline position
- Blades: precision-ground, knife-type blades
- Frame: die-cast zinc
- Jaws: spring-loaded and automatically reopen after stripping
- See datasheet from the manufacturer
