Stäubli SP6AR-N/16 plug, MPN 05.0202

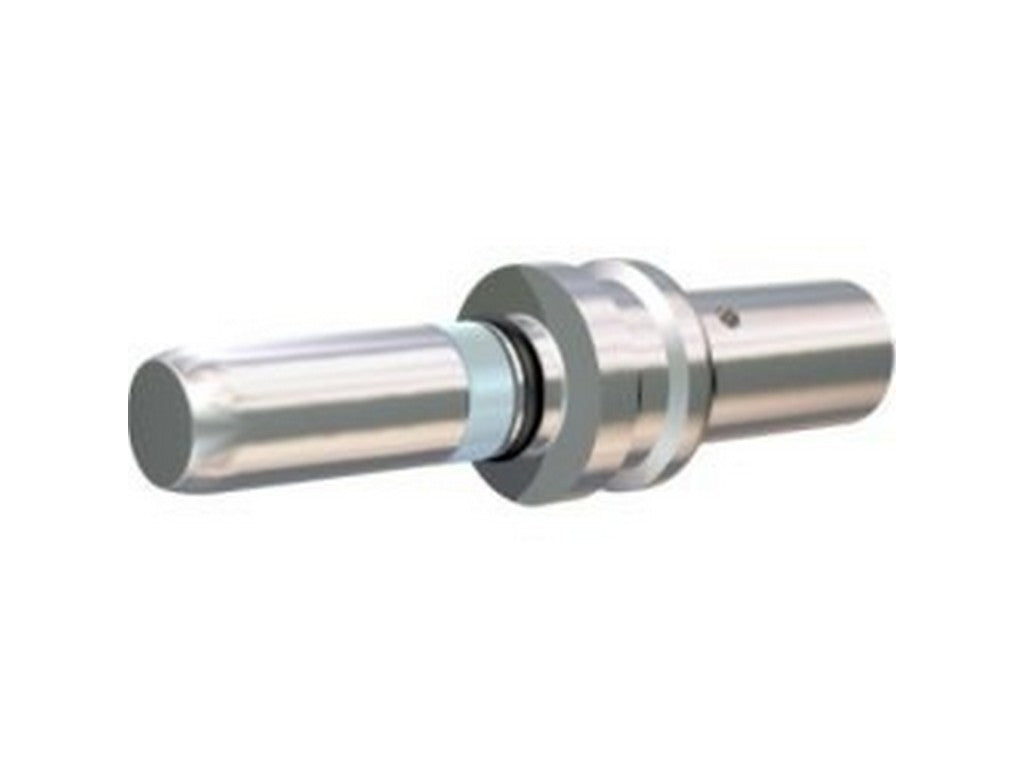

The Stäubli SP6AR-N/16 is a 1-pole, uninsulated connector from the series of round industrial connectors. It is designed as a plug with snap-in lock and crimp termination, making it suitable for applications requiring a robust yet quick connection for high current.
In practice, it is a connector for power transmission in installations where the connection needs to be easy to assemble and secure. The snap-in lock helps maintain the connection, while the crimp termination provides a mechanically and electrically correct cable termination. The catalog also states that hexagonal crimping is recommended for flexible copper cables of classes 5 and 6, and that both indent crimping and soldering are also possible.
The connector is designed for 16 mm² Cu and is rated for a current of 100 A at 80 °C. This makes it relevant in professional environments where live connections are used, and where a compact solution is desired without compromising current capacity. The specified dimensions also make it easier to plan space in an assembly.
See datasheet from the manufacturer
Typical applications
- Power connections in industrial equipment
- Connections in panels and systems with high currents
- Assemblies where a plug with snap-in lock is desired
Specifications
- Manufacturer: STAUBLI
- MPN: 05.0202
- Model: SP6AR-N/16
- 1-pole, uninsulated round connector
- Plug with snap-in lock
- Crimp termination
- For conductor area: 16 mm² Cu
- Rated current: 100 A at 80 °C
- Weight: 0.013 kg
- Dimensions: ØA 9 mm, ØB 6 mm, C 22 mm, D 45 mm, ØE 9 mm, ØK 6 mm, L 14 mm, N 7 mm
