Stäubli 05.0205

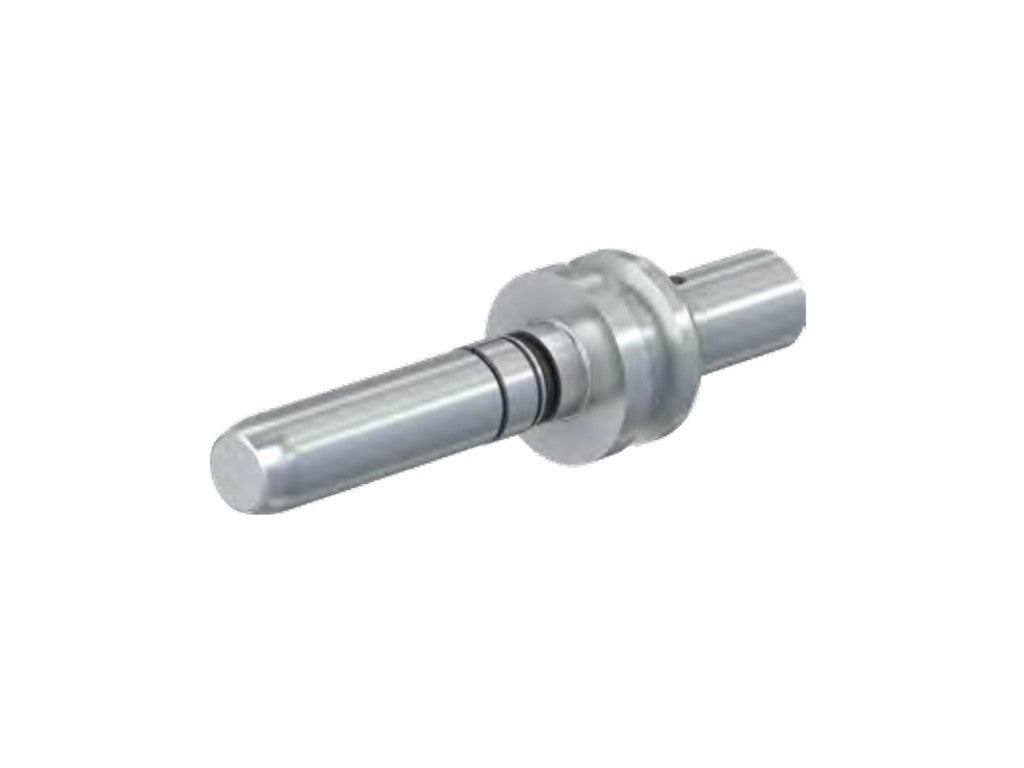

The Stäubli 05.0205 is a single-pole round connector in the uninsulated series. It is used when a robust power connection is required in a system where high current capacity and a simple, mechanically strong connection are needed.
This is the SP10AR-N/50 type, which is included in Stäubli's catalog of Round Connectors 1-pole uninsulated. The connector type is designed for a 50 mm² copper conductor and is rated for a nominal current of 180 A at 80 °C. This makes it relevant in installations where a lot of power needs to be transferred without making the connection unnecessarily complicated.
As an uninsulated connector, it is intended for constructions where the connection itself is part of a protected or shielded environment. In practice, it is therefore often seen in contexts involving power distribution and heavy electrical connections, where it is important that the connection is compact and easy to service.
The specified dimensions are ØA 20.5 mm, ØB 10 mm, C 42.5 mm, and D 85.5 mm. The weight is 0.074 kg.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 05.0205
- Type: SP10AR-N/50
- Single-pole round connector, uninsulated
- Cable cross-section: 50 mm² copper
- Rated current: 180 A at 80 °C
- Dimensions: ØA 20.5 mm, ØB 10 mm, C 42.5 mm, D 85.5 mm
- Weight: 0.074 kg
