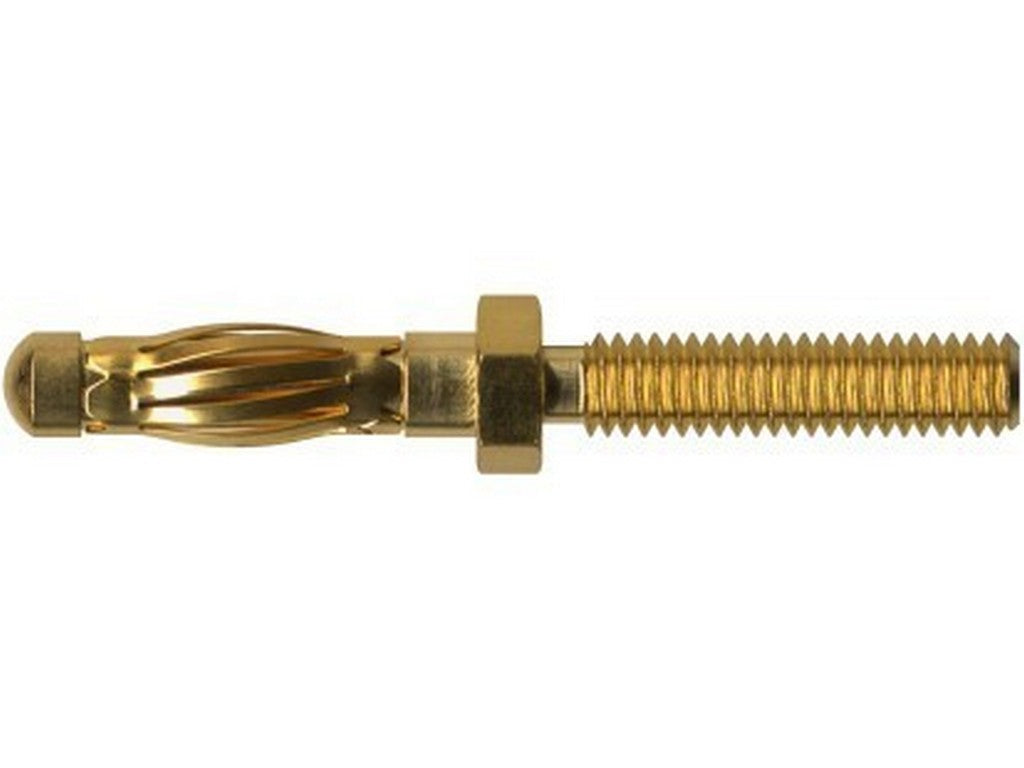

STAUBLI SA400, MPN 22.1050
The STAUBLI SA400 is a 4 mm MULTILAM plug for professional connections where a compact contact with high current capacity and low contact resistance is desired. It is used when a wire or an installation needs to be terminated in a solid plug solution, and where stable contact over time is required.
The contact itself is made of CuZn with gold plating. In practice, this means you get a contact surface designed for good electrical properties and low, stable contact resistance. The nominal current is 50 A, and the maximum temperature is 150 °C. This makes it suitable for tasks involving relatively high loads in a technical installation.
The connection is made with M4. This is an important detail because it indicates how the part is mounted in the specific setup. The withdrawal force is approximately 10 N, so the connection has a noticeable but still manageable hold. At the same time, the assembly material must be ordered separately.
Typical applications
Stäubli specifies MULTILAM plugs for machine building, measurement technology, automotive, medical technology, lighting, as well as research and laboratories. The SA400 fits into these types of environments where a robust and repeatable contact solution is needed in a professional setup.
If you need to build or maintain a connection in a technical system, this is precisely the type of component that makes it easier to achieve a secure and reproducible connection without taking up much space.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 22.1050
- Type: SA400
- Nominal diameter: 4 mm
- Termination: M4
- Metal parts / plating: CuZn, Au
- Rated current: 50 A
- Maximum temperature: 150 °C
- Contact resistance: 0.2 mΩ
- Typical withdrawal force: ~10 N
- Assembly material: ordered separately
