STAUBLI 22.5117 MULTILAM plug SA2,5-G
STAUBLI 22.5117 is a MULTILAM plug with a nominal diameter of 2.5 mm. It is used when a compact and secure electrical connection is required in equipment where stable contact and low contact resistance are critical. Here, the M2.5 connection is the practical detail: it specifies how the plug is mounted in the associated equipment.
The plug is made of brass with gold plating. In practice, this means a contact surface designed to maintain low and stable contact resistance over time. The stated contact resistance for the gold-plated version is 0.5 mΩ, and the rated current for this size is 25 A. The upper temperature limit is 150 °C.

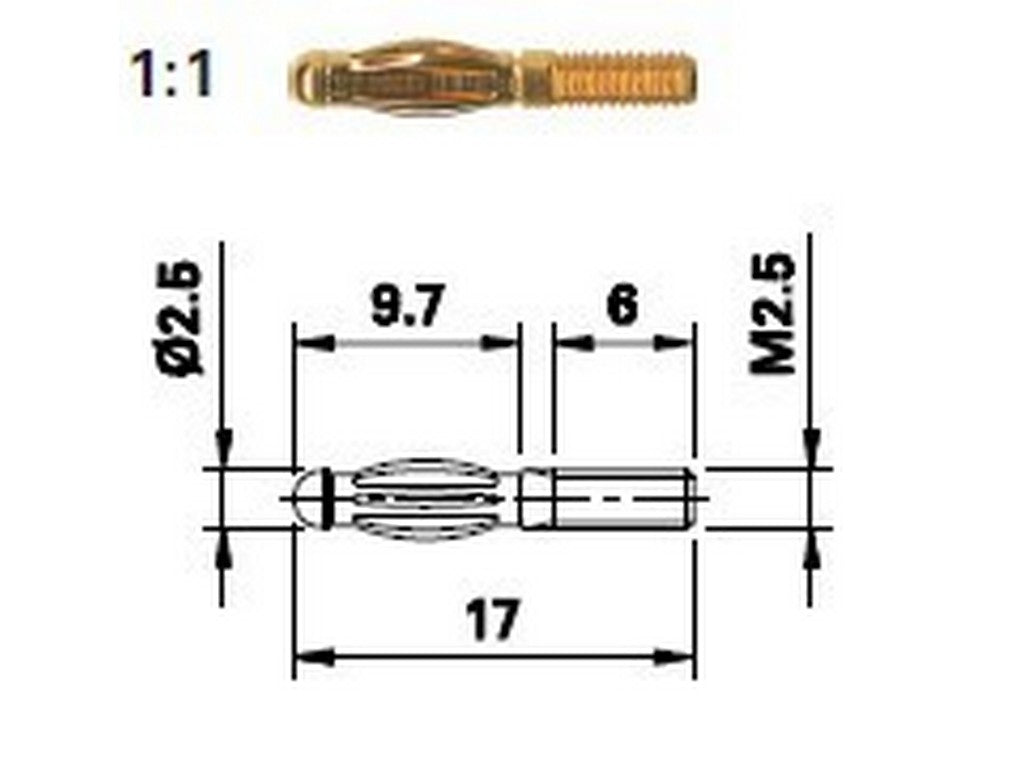

For a professional user, it is particularly relevant that it is built as a solid metal pin and is part of Stäubli's MULTILAM contact principle. This provides a contact solution suitable when the connection needs to withstand repeated use and still function reliably. The dimensions specified for SA2.5-G include 9.7 mm, 6 mm, Ø2.5, M2.5, and a length of 17 mm.
For correct mounting, associated mounting material is available and selected separately.
See datasheet from the manufacturer
Typical applications
Stäubli's MULTILAM plugs are mentioned for use in mechanical engineering, medical technology, automotive, measurement technology, education, lighting, and research and laboratories, among others.
Specifications
- Manufacturer: STAUBLI
- MPN: 22.5117
- Type: MULTILAM plug SA2,5-G
- Nominal diameter: 2.5 mm
- Connection: M2.5
- Metal parts: brass (CuZn)
- Plating: gold
- Contact resistance: 0.5 mΩ
- Rated current: 25 A
- Upper temperature limit: 150 °C
- Stated dimensions: 9.7 mm, 6 mm, Ø2.5, M2.5, length 17 mm
