STAUBLI S5N

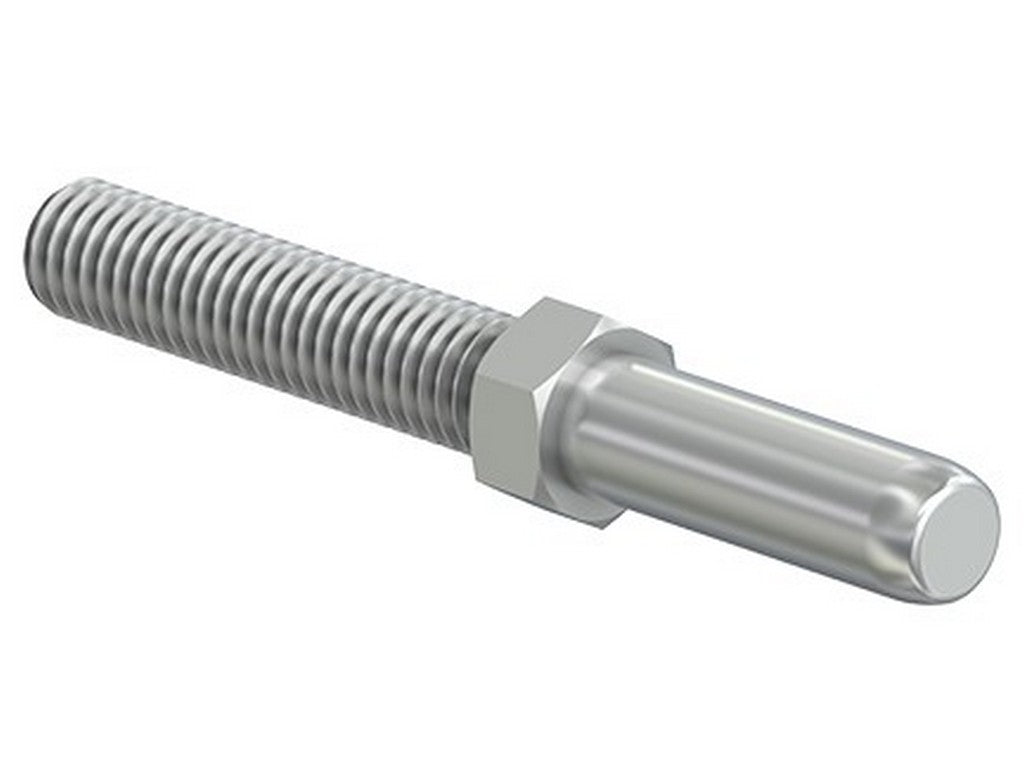

The Stäubli S5N, order number 04.0004, is a single-pole, uninsulated round connector. It is used to create an electrical connection that is easy to assemble and disassemble in professional systems. In practice, it is a compact connector for power connections, focusing on low contact resistance and a stable mechanical connection.
The connector belongs to Stäubli's series of 1-pole uninsulated round connectors. It features a threaded connection and is designed for mounting where the connection must be tightened correctly with tools. The recommended wrench size is 7 mm, and the tightening torque is 2.0 Nm. This makes it easier to achieve a consistent and controlled assembly.
For a technician, the most important figures are often current and size. Here, the nominal current is 70 A at 80 °C and 100 A at 150 °C. The part itself measures Ø A 5 mm, Ø B 19.5 mm, and a length of 48.5 mm, with an M5 thread. The weight is 0.008 kg.
It is therefore a small component, but it is made for a task where a secure and repeatable power connection is important. The product catalog designates it as part of Stäubli's Round Connectors series.
Specifications
- Manufacturer: STAUBLI
- MPN: 04.0004
- Type: single-pole, uninsulated round connector
- Model: S5N
- Thread: M5
- Ø A: 5 mm
- Ø B: 19.5 mm
- Length C: 48.5 mm
- Recommended wrench size: 7 mm
- Tightening torque: 2.0 Nm
- Nominal current: 70 A at 80 °C
- Nominal current: 100 A at 150 °C
- Weight: 0.008 kg
- See datasheet from the manufacturer
