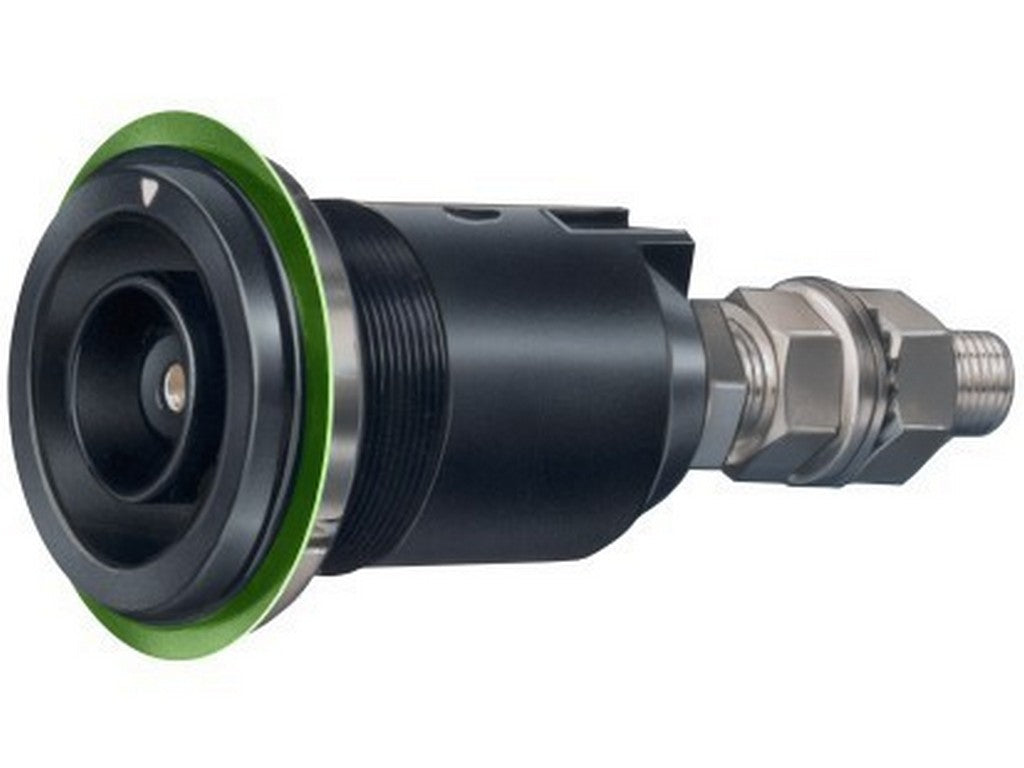

STAUBLI ID/S16BV-NS, MPN 14.0040
The STAUBLI ID/S16BV-NS is a single-pole, insulated circular connector in the 16BV series. It is used when very high currents need to be safely conducted with a compact and lockable connection. A practical feature here is that the connector is designed for 1000 V AC and 1500 V DC, while also being rated for up to 530 A according to IEC.
The connector has a bayonet lock, ensuring a quick and secure connection. This solution provides a clear and robust coupling in equipment where an unintended disconnection is undesirable. When the connector is mated, the ingress protection rating is IP65; unmated, it is IP2X. In practice, this indicates how well the connection is protected against touch and the ingress of dust and water in its operational state.
The contact resistance is stated as ≤25 µΩ via the MULTILAM contact, which is relevant when working with high currents and aiming to minimize voltage drop and heat generation in the connection itself. For crimp connections, conductor cross-sections from 50 mm² to 240 mm² are recommended, allowing the connector and cable to be dimensioned for the task.
This is a spare part and component for professional installations requiring high current conduction, mechanical retention, and safe handling. The temperature range from −40 °C to +90 °C makes it suitable for a wide industrial environment.
Typical Applications
- Power connections in industrial equipment
- Electrical connections requiring high current and high voltage
- Applications where a lockable connector is desired
Specifications
- Manufacturer: STAUBLI
- MPN: 14.0040
- Product Name: ID/S16BV-NS
- Series: 16BV
- Type: Single-pole, insulated circular connector
- Rated voltage: AC 1000 V / DC 1500 V
- Rated current: up to 530 A (IEC)
- Locking type: Bayonet lock
- Nominal insulation diameter: 16 mm
- Ingress Protection (mated): IP65
- Ingress Protection (unmated): IP2X
- Contact resistance: ≤25 µΩ
- Recommended conductor cross-section for crimp: 50 mm²–240 mm² (1/0 AWG–500 MCM)
- Operating temperature: −40 °C to +90 °C
- See datasheet from the manufacturer
