STAUBLI 04.0008

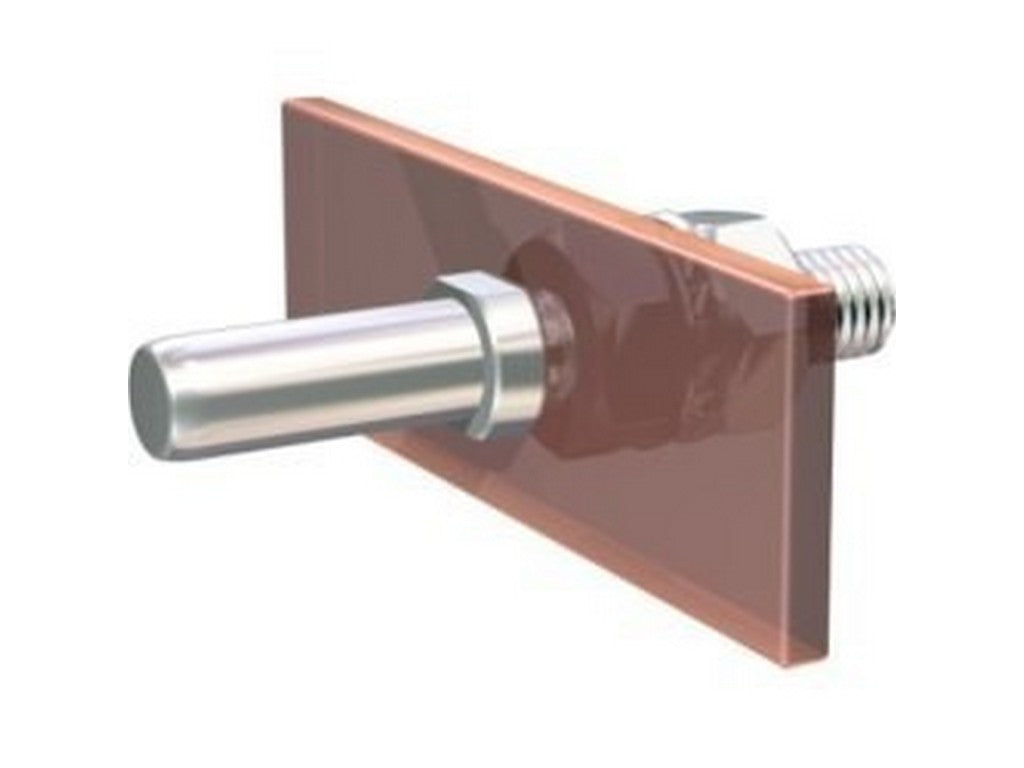

The Stäubli 04.0008 is a 1-pole, uninsulated round connector of type S12N. It is used as a powerful, simple connection component when a reliable power connection needs to be established in industrial installations. At Stäubli, it belongs to the series of round, 1-pole uninsulated connectors, with a focus on high current carrying capacity and stable contact.
This size is designed for demanding connections where a common small plug connection is not sufficient. It is rated for 230 A at 80 °C and 420 A at 150 °C, making it a component typically used in situations where the current is high and the connection needs to be robust over time. The specified tightening torque is 16 Nm, and the weight is 0.077 kg.
In practice, it is relevant when working with fixed or serviceable high-current connections in industry, control panels, or other technical systems. The uninsulated design means that it is typically part of a solution where the mounting itself and the surrounding shielding are considered from the outset.
Stäubli also provides the dimensions that are important for installation: Ø A 18 mm, Ø B 12 mm, C 34 mm, D 87 mm, thread E M12, F 48 mm, G 5 mm and SW 13.
See datasheet from the manufacturer
Typical applications
- High current connections in industrial installations
- Power transmission and distribution
- Switchgear and busbar connections
- Manufacturing systems and test benches
- Cable coupling and other industrial power connections
Specifications
- Manufacturer: STAUBLI
- MPN: 04.0008
- Type: S12N
- 1-pole, uninsulated round connector
- Rated current: 230 A at 80 °C
- Rated current: 420 A at 150 °C
- Tightening torque: 16 Nm
- Weight: 0.077 kg
- Ø A: 18 mm
- Ø B: 12 mm
- C: 34 mm
- D: 87 mm
- Thread E: M12
- F: 48 mm
- G: 5 mm
- SW: 13
