Product Overview
This description refers to the SILI-1V 2.5 from STAUBLI, a super-flexible silicone-insulated conductor. The product is specified as a 2.5 mm² multi-stranded conductor with reinforced insulation and documented electrical and mechanical data.Technical Description

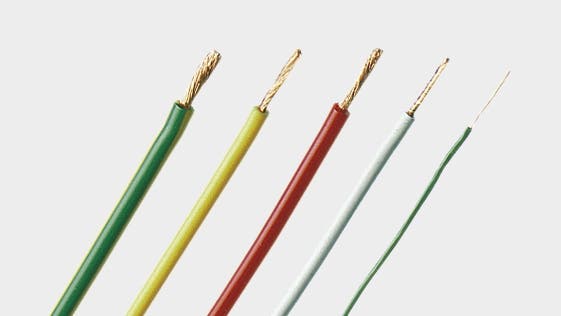

SILI-1V 2.5 is a super-flexible stranded wire with silicone insulation (SIL). The description outlines the conductor's construction, dimensions, and electrical limits, including both AC and DC ratings, as well as approvals.Documentation
See datasheet from the manufacturerSpecifications
- Product name: SILI-1V 2.5
- Manufacturer: STAUBLI
- Manufacturer's part number: 61.7610-10021
- Conductor cross-section: 2.5 mm²
- Strand design: 651 × 0.07 mm
- Conductor diameter (conductor): 2.3 mm
- Cable outer diameter: 4.6 mm
- Insulation material: SIL (silicone)
- Insulation thickness: 1.15 mm
- Lead weight: 38.0 kg/km

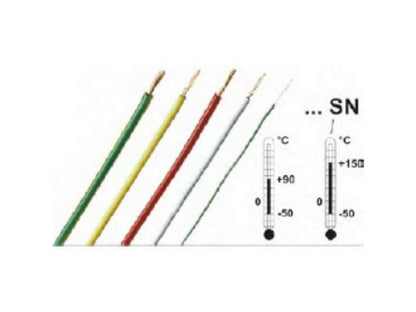

- Temperature range: -50 °C … +90 °C
- Rated values: AC 1000 V, DC 1500 V
- Rated current: 32 A
- Approvals: UR, CE, UKCA, EAC
