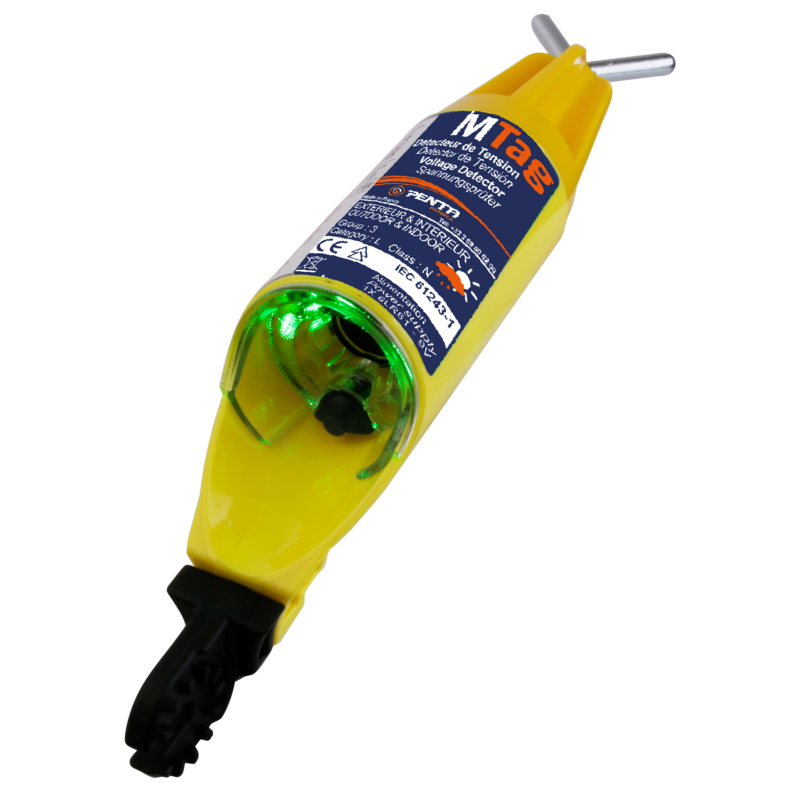

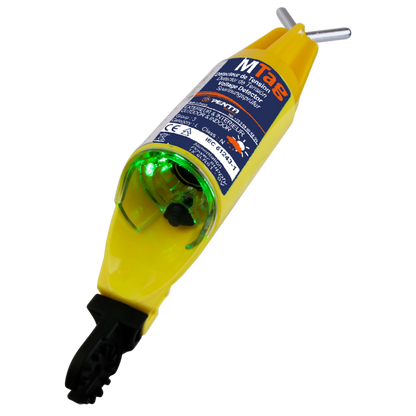

MTAG - Medium Voltage Capacitive Voltage Detector
The MTAG is a medium voltage capacitive voltage detector intended for "proving dead" — that is, verifying that nominal voltage is absent on high-voltage distribution networks. This product variant, MTAG1036GHUA, is calibrated for the voltage range 10–36 kV and is designed to provide visual and acoustic indication of voltage presence within the calibrated range. citeturn0view0
Function and indication

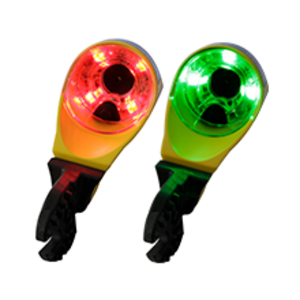

The device performs an automatic self-test on startup and indicates ready status with a green LED. When voltage is detected within the calibrated range, a red LED and an audible alarm are activated. Low battery level is indicated by an orange LED. The acoustic alarm is specified at 100 dB in the technical data. These indications allow the user to quickly determine if a conductor is live before further work. citeturn0view0
Design and delivery

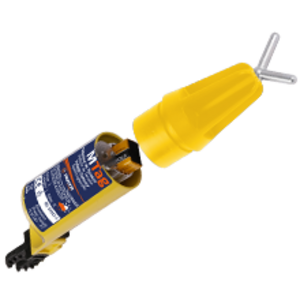

The MTAG is supplied in a yellow polycarbonate housing and powered by one 9 V battery cell. The instrument has dimensions of 280 x 59 x 59 mm and a weight of 0.390 kg. Product accessories include a soft case with conductive lining for EMC protection. The electrode connection is specified as universal (U), APV plug. These elements are documented in the manufacturer's product information. citeturn0view0
Specifications
- Model: MTAG1036GHUA (MTAG)
- Calibrated voltage range: 10–36 kV
- Indication for voltage: red LED + audible alarm
- Self-test / ready indication: green LED
- Low battery level: orange LED
- Power supply: 1 × 9 V battery
- Housing material: yellow polycarbonate
- Dimensions: 280 × 59 × 59 mm
- Weight: 0.390 kg
- Acoustic level: 100 dB
- Supplied in: soft case with conductive lining (EMC)
- Electrode connector: universal (U), APV
- Manufacturer: SFE
