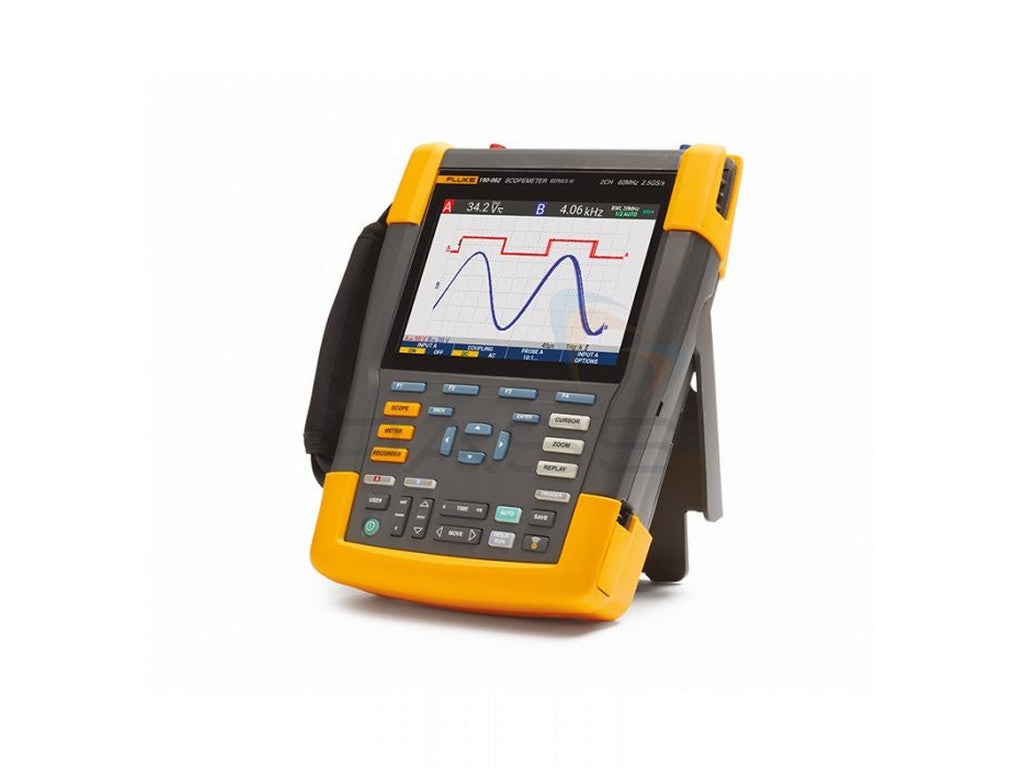

Fluke 190 Series III ScopeMeter 190-062-III/S
This is a portable ScopeMeter test instrument for troubleshooting and measurement in demanding industrial environments. It combines a two-channel oscilloscope with a built-in digital multimeter, allowing both signal waveform viewing and more common electrical measurements on the same device.
The model has two independently isolated inputs, which is a great advantage when working in circuits with different ground references. This makes it easier to measure safely in mixed installations without having to switch between multiple instruments. At the same time, it is safety-rated for CAT III 1000 V / CAT IV 600 V and has IP51 protection against dust and drips.
In practice, this means it is designed for tasks where you need to work both out in the plant and close to the fault you are looking for. Connect-and-View™ helps to automatically obtain a stable display, and the other ScopeMeter functions make it possible to capture, save, and review short or difficult signal faults. On two-channel models, there is also a 5000-count DMM for common measurements such as voltage, resistance, continuity, and diode testing.
As a kit, it comes with several parts that make it ready for use in the field: BC190/830 power supply, BP290 Li-ion battery pack, TL175 test lead set, VPS421 probes, USB cable, CXT293 carrying case, and DWA-131 WiFi dongle.
Typical applications
- Troubleshooting industrial equipment, automation, and process control
- Measuring power supplies and power conversion electronics
- Inspecting and analyzing complex signals in the field
- Detecting sporadic faults, glitches, and signal dropouts
Specifications
- Manufacturer: FLUKE
- MPN: 5282354
- Model: Fluke 190-062-III/S
- Two-channel, portable ScopeMeter test instrument
- Bandwidth: 60 MHz
- Two independently isolated inputs
- Built-in digital multimeter: 5000 counts
- Safety rating: CAT III 1000 V / CAT IV 600 V
- IP51
- Included kit parts: BC190/830, BP290, TL175, VPS421 (2 pcs.), USB cable, CXT293, and DWA-131
- Datasheet: View datasheet from the manufacturer
