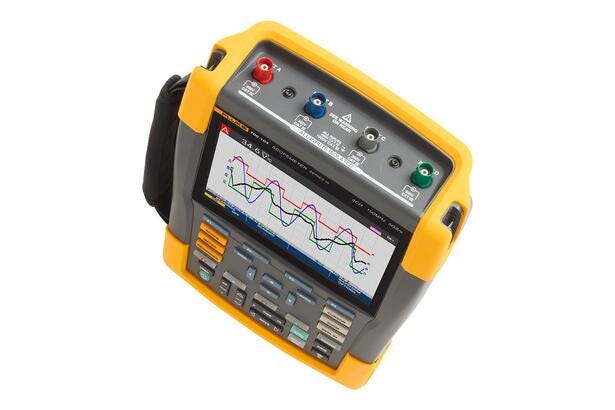

Fluke 190 Series III ScopeMeter Test Tool 190-062-III
Here is a handheld oscilloscope for industrial troubleshooting, where you need to both view signal waveforms and work safely in the field. The Fluke 190 Series III ScopeMeter Test Tool, model 190-062-III, is a two-channel version with a 60 MHz bandwidth, making it suitable for examining electrical signals directly on installations, machines, and control systems.
What is special about this type of ScopeMeter is the combination of an oscilloscope and a portable measuring instrument in one unit. It features a large color display, making curves and measurements easier to read on site, and data can be transferred via USB or Wi-Fi, if that function is used in the setup. This makes it easier to document faults, save screenshots, and continue working on a PC afterwards.
When troubleshooting in industrial and electrical engineering, safety and robustness are crucial. Therefore, the instrument is safety-rated CAT III 1000 V / CAT IV 600 V and has an IP51 ingress protection rating. In practice, this means it is built for demanding environments where dust and drips may occur, and where measurements are taken close to high-voltage installations.
The standard kit for the 190-062-III comes with a BP290 Li-ion battery pack and VPS421 probes. This provides a complete solution that can be used in the field without having to assemble the main components yourself first.
Typical Applications
- Troubleshooting industrial and automation equipment
- Measuring electrical signals in installations and control systems
- Documenting and sharing waveforms for further analysis
Specifications
- Manufacturer: FLUKE
- MPN: 5282331
- Model: 190-062-III
- Two-channel handheld oscilloscope
- Bandwidth: 60 MHz
- Color display
- USB data transfer
- Wi-Fi data transfer (optional)
- Safety rating: CAT III 1000 V / CAT IV 600 V
- Ingress protection: IP51
- Comes with BP290 Li-ion battery pack
- Comes with VPS421 probes
- EAN/GTIN: not verified in the provided data
- See datasheet from the manufacturer
Content generated by AI - we reserve the right for errors.
Contact HIN for further product information.
