Product Description

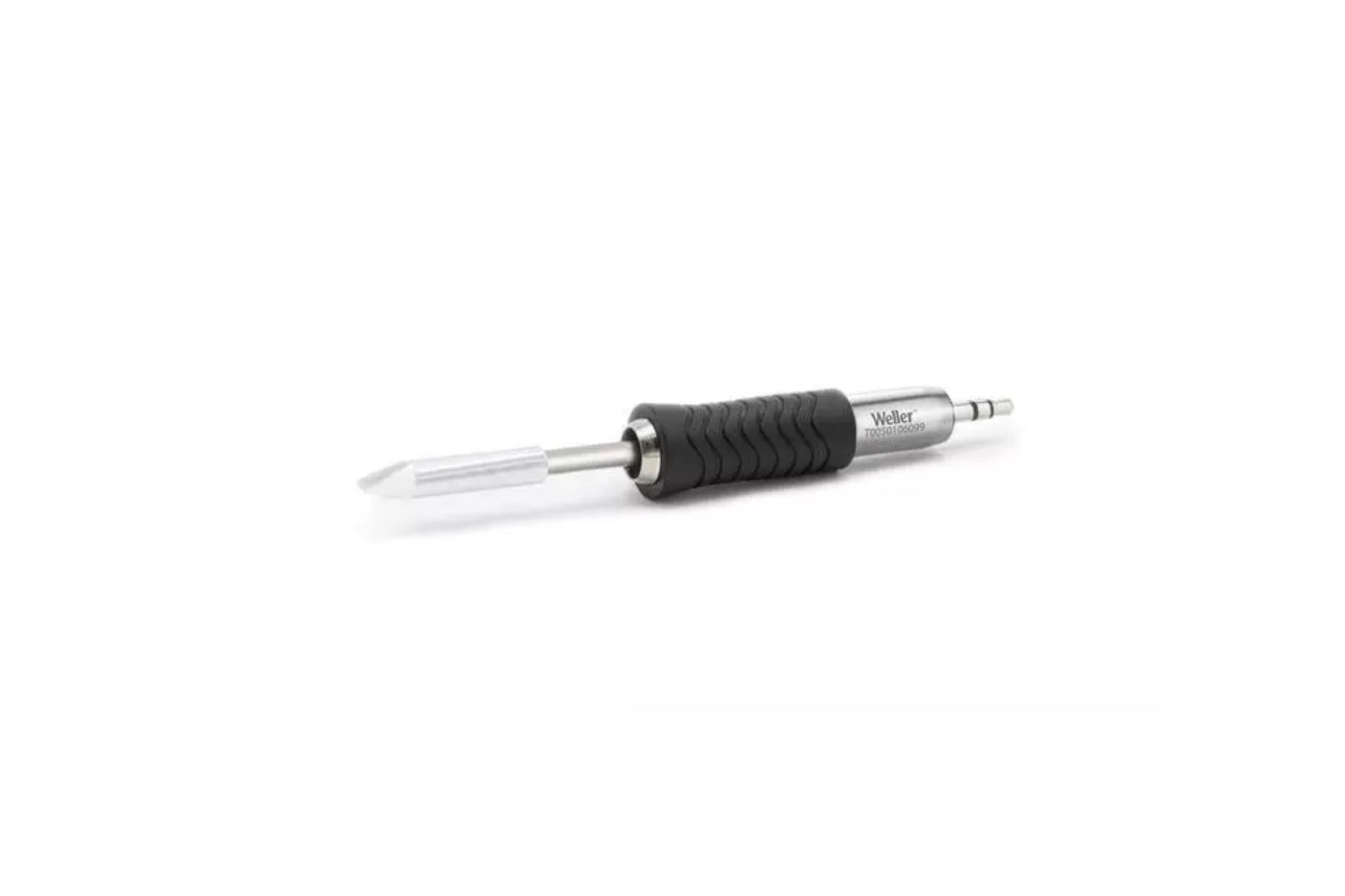

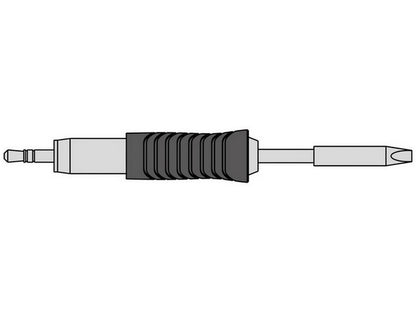

This RTU 032 S MS soldering tip (Item No. T0050106099) from WELLER is an RT Ultra active soldering tip designed as a short chisel tip with dimensions 3.2 × 0.8 mm. The product is specified as MIL-SPEC / IPC and is ESD-safe. The RTU 032 S MS is designed for high-performance and heavy-duty applications and is intended for use with WXUP-MS soldering irons.
Technical Specifications
- Tip Shape: Chisel (short)

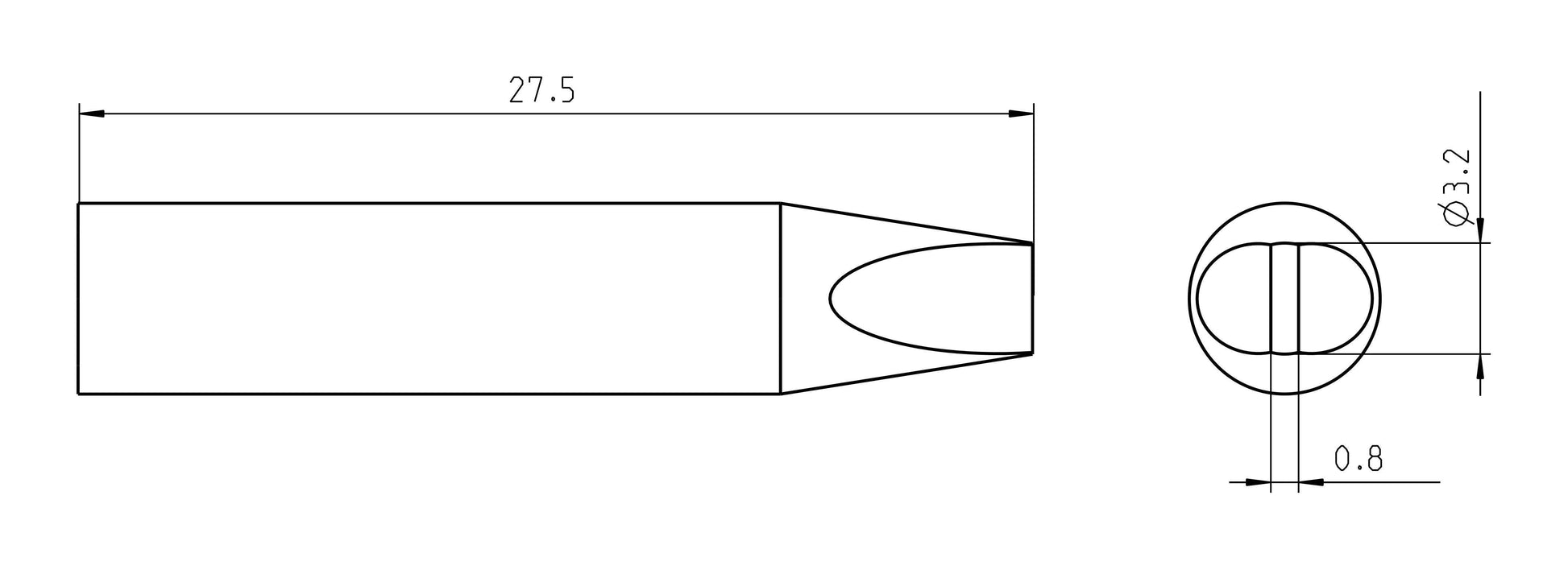

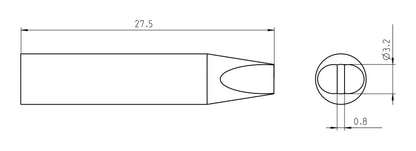

- Dimensions: 3.2 × 0.8 mm
- Compatibility: Works With WXUP-MS
- ESD Safe: Yes
- MIL-SPEC / IPC: Yes
- Power: 150 W
- Length: 1 in
Documentation
For official product information and full technical material, please refer to the manufacturer's datasheet: See manufacturer's datasheet.
Typical Applications
The following applications are explicitly mentioned in the manufacturer's technical material and describe what the RTU 032 S MS is intended for:
- LED soldering
- Solar technology
- Electronic components
- Multi-layer boards
- Large heat sinks
- High-frequency PCBs with large dissipator
Specifications
- Product Name: RTU 032 S MS (Item No. T0050106099)
- Product Family: RT Ultra Active Soldering Tips
- Tip Type: MS WX
- Tip Shape: Chisel
- Dimensions: 3.2 × 0.8 mm
- Length: 1 in
- Power: 150 W
- ESD Safe: Yes
- Mil-Spec: Yes
- Tip Finder Size Range: 3.0 - 6.0 mm
- Quantity per package: 1
- Compatibility: Works With WXUP-MS
- UPC: 037103331809
- Source: WELLER product datasheet (T0050106099)
