WELLER RTPS 002 C X MS — Nano/Pico Soldering Tip

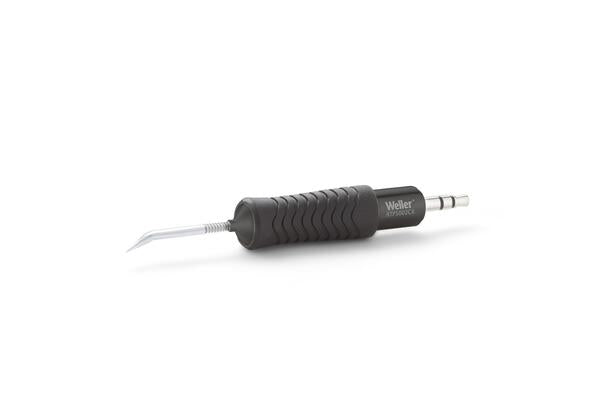

This WELLER RTPS 002 C X MS is a Nano/Pico soldering tip with a conical bend and a tip diameter of 0.2 mm. The product is MIL-SPEC compliant and is documented for Nano/Pico applications with very small component sizes. The tip is specified by the manufacturer with a length of 20.6 mm and a tip angle of 30°. The tip type is indicated as MS and is intended for use with WXMPS MS smart soldering irons and WXsmart soldering stations.
Documentation
The manufacturer's technical information and datasheet describe the tip's shape, dimensions, and compatibility, as well as smart functions such as identification and data storage. See datasheet from the manufacturer
Typical Applications
- Used for Nano/Pico applications and soldering work on very small components, specifically mentioned 0402 to 01005.
- Designed for working under a microscope, where high precision and a short distance from tip to grip are required.
Technical and Functional Properties
- Conical bent tip shape.
- Tip diameter: 0.2 mm.
- Tip length: 20.6 mm.
- Tip angle: 30°.
- MIL-SPEC compliant (stated in manufacturer documentation).
- Tip type: MS, belongs to the Smart RT Pico tip range.
- Compatible with WXMPS MS smart soldering irons and WXsmart soldering stations.
- Smart functions mentioned by the manufacturer: fast 3-second heat-up, clear identification of smart tips, tip lock function, integrated data storage and tip ID for traceability, and tip-offset function.
- The manufacturer's product page also includes downloadable images.
Specifications
- Product name: RTPS 002 C X MS
- Item No: T0050110899
- Length: 20.6 mm
- Diameter: 0.2 mm
- Tip angle: 30°
- Tip shape: Conical bent
- Tip type: MS
- Mil-Spec: Yes
- Compatibility: WXMPS MS and WXsmart
- Product family: SMART RT Nano/Pico Active Tips
Sources: Information and technical data are taken from the manufacturer's product text and datasheet (see datasheet above).
