Product Overview

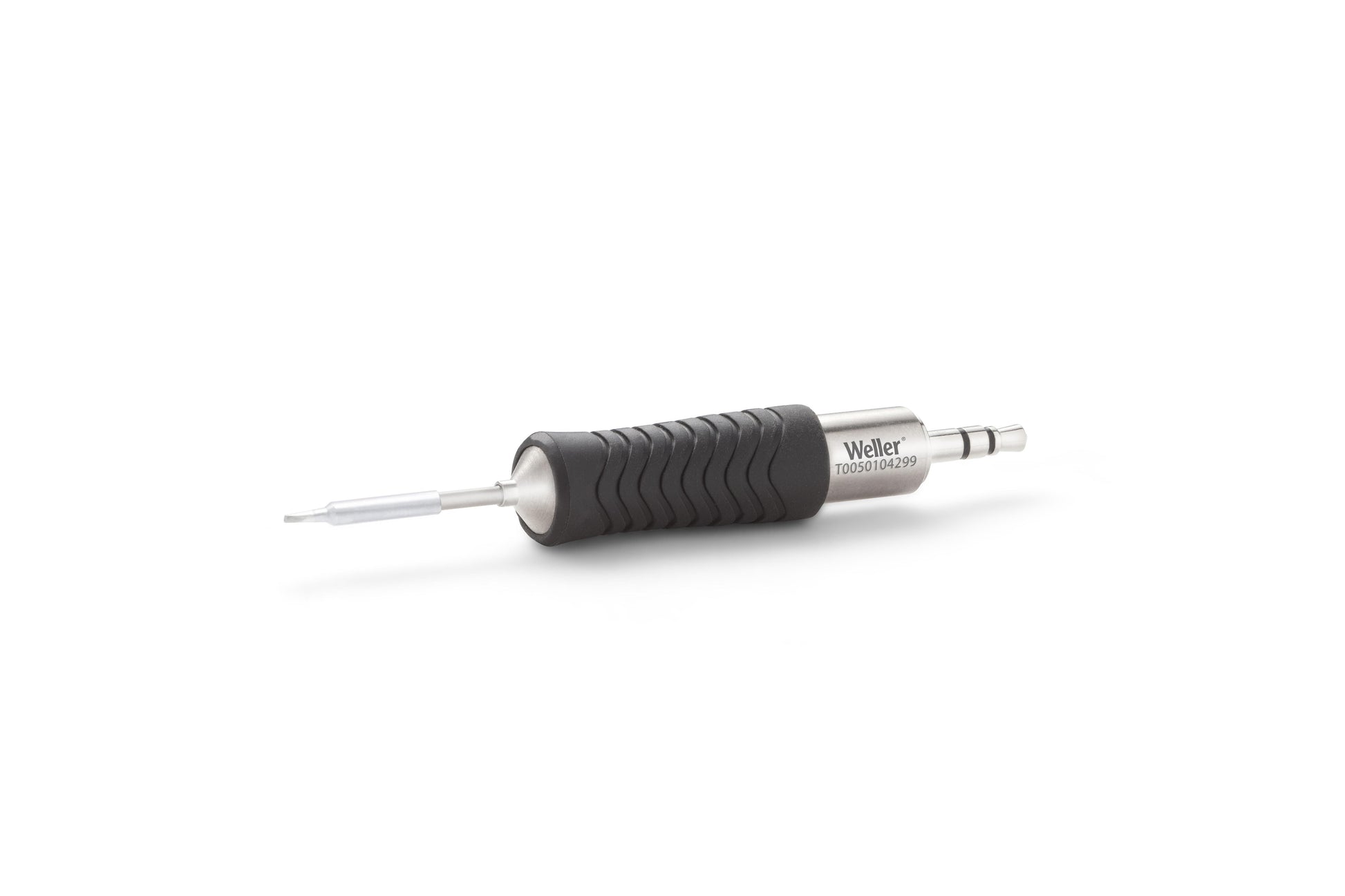

The Weller RTP 008 S is an RT Pico chisel soldering tip (Item No. T0050104299) from WELLER designed for precision soldering of very small components. The product is described by the manufacturer as a high-performance active RT tip for nano/pico applications and is stated to work with WXPP soldering pencils.Technical Description
- Type: RT Pico chisel soldering tip

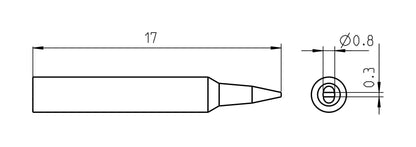

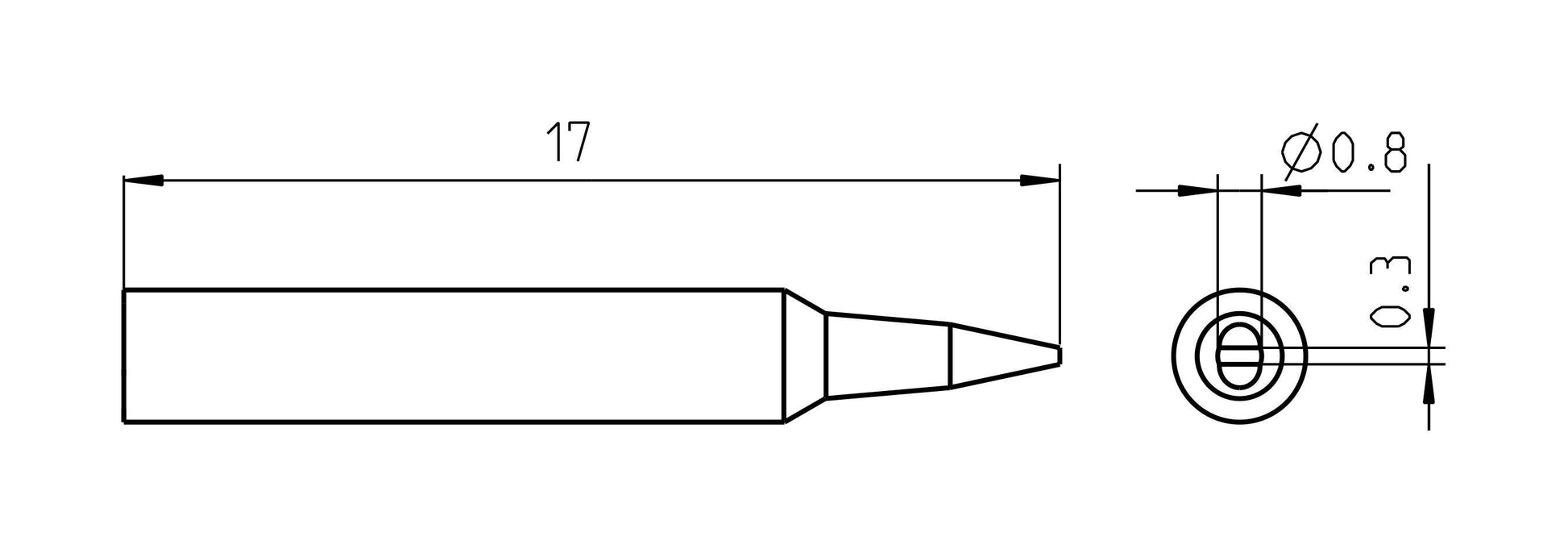

- Dimensions: Ø 0.8 × 0.3 mm
- Tip type: HM RT WX
- Compatibility: Works With WXPP (WXPP soldering pencils)
- Power: 40 W
- Length: 0.6 in
- ESD: Yes (ESD Safe)
- Tip finder size: 0.4 - 1.0 mm
Documentation
Description and technical data are provided by the manufacturer. For further details and the manufacturer's PDF datasheet: See datasheet from manufacturer.Typical Applications
Use cases indicated by the manufacturer's material and datasheets include precision soldering of the smallest components (0402 down to 01005) and applications where a short tip-to-grip distance and high precision are required. The manufacturer's text specifically mentions applications within:- Aerospace
- Military (MS versions only)
- Electronics
- Sensors
- Medical devices
- Automotive
Specifications
- Product name: Weller RTP 008 S (Item No. T0050104299)
- Tip shape: Chisel
- Dimensions: Ø 0.8 × 0.3 mm
- Suitable for component sizes: 0402 down to 01005
- Tip type: HM RT WX
- Compatible with: WXPP
- Power: 40 W
- Length: 0.6 in
- ESD Safe: Yes
- Tip finder size: 0.4 - 1.0 mm
Source
- WELLER manufacturer data and product description: See datasheet from manufacturer
