Product: Röhrenaal® Ø 9 mm Cable Pulling System (Polykat® Fibreglass Profile)
This cable entry system from KATIMEX, the Röhrenaal® Ø 9 mm Cable Pulling System (Polykat® Fibreglass Profile) in the 80 m version (item no. 103008), is a mechanical pulling and guiding device for inserting Polykat® fibreglass profiles into conduits. The description below is based on the manufacturer's official product information.
Description

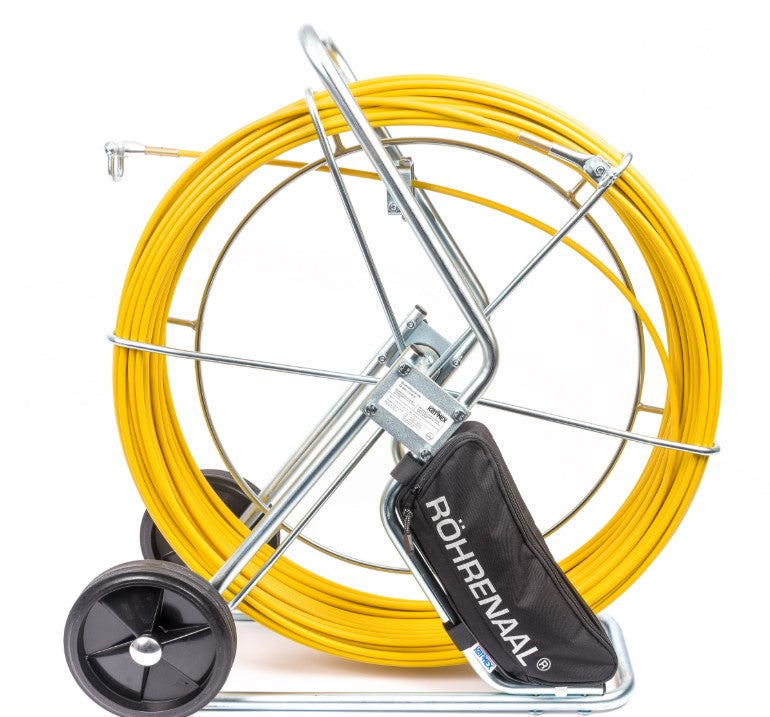

The Röhrenaal® Ø 9 mm Cable Pulling System is supplied with an 80 m Polykat® fibreglass profile and has a total weight of 19 kg. The tape has a diameter of 9 mm and a specified breaking strength for the Polykat® profile of approximately 40 kN. The unit is mounted on a fully galvanised steel tube construction with an integrated, easily adjustable braking system and a storage basket for the tape. Both ends of the tape are equipped with starter sleeves with M12 external threads.
Typical Applications
- Residential installation (Hausinstallation) — use of Polykat® profile for insertion into existing conduits.
- Commercial and industrial building installation (Installation in Gewerbe- und Industriebauten).
- Signal system construction (Signalanlagenbau) — routing of cable/profile in signal conduits.
- Underground utility construction (Unterirdischer Leitungsbau) — insertion through underground conduit systems.
Scope of Delivery
- Service bag and service kit as specified by the manufacturer.
- Service kit includes: 2 brass starter sleeves M12, 1 brass connecting sleeve, 4 clamping sleeves, and 1 special adhesive 20 g.
- Also includes a guiding head with Ø 25 mm and shackle.
Documentation
Further technical data and manufacturer information can be found in KATIMEX's official catalogue.
See datasheet from the manufacturer
Specifications
- Product Name: Röhrenaal® Ø 9 mm Cable Pulling System (Polykat® Fibreglass Profile), Art.-Nr. 103008
- Tape Diameter: 9 mm
- Tape Breaking Strength (Polykat® profile): approx. 40 kN
- Min. Bending Radius for 9 mm version: 240 mm
- Length: 80 m
- Weight (80 m variant): 19 kg
- Starter Sleeves: Brass, external thread M12, mounted at both tape ends
- Frame: Fully galvanised steel tube construction with integrated, adjustable brake and storage basket
- Included Guiding Head: Ø 25 mm with shackle
- Included Service Kit: 2 brass starter sleeves M12, 1 brass connecting sleeve, 4 clamping sleeves, 1 special adhesive 20 g and service bag
