Product Overview

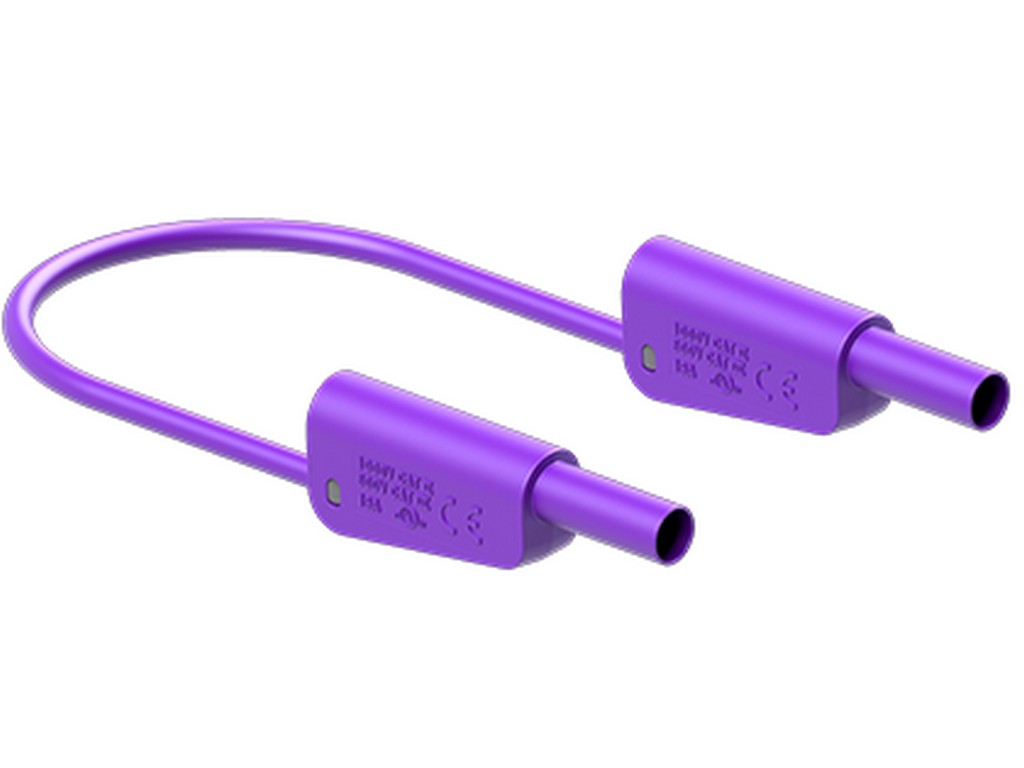

This STAUBLI SLK-4N-F25 test lead is a flexible test lead with PVC insulation and stackable Ø 4 mm MULTILAM plugs with a rigid insulating sleeve on both ends. The SLK-4N-F25 product family (order no. 66.2014-*) is specified by the manufacturer and identifies the lead geometry, electrical limits, and material properties.Technical Description
- Plug diameter: 4 mm MULTILAM
- Insulation: PVC
- Stackable plugs with rigid insulating sleeve on both ends
- Contact material: CuZn (base material) with nickel surface treatment
- Cable cross-section: 2.5 mm²
- Available lengths: 025, 050, 075, 100, 150 and 200 cm
- Test accessory according to IEC EN 61010-031
- Approvals: UL, CE
Electrical Limits
- 1000 V, CAT II, 32 A
- 600 V, CAT III, 32 A
Documentation
Detailed technical information and manufacturer data can be found in the manufacturer's datasheet: View manufacturer's datasheet.
Specifications
- Product name: SLK-4N-F25 (order no. 66.2014-*)
- Plug diameter: 4 mm
- Current: 32 A
- Voltage rating: 1000 V (CAT II) / 600 V (CAT III)
- Cable cross-section: 2.5 mm²
- Insulation material: PVC
- Contact base material: CuZn
- Contact surface: Ni (nickel)
- Available lengths: 025, 050, 075, 100, 150, 200 cm
- Standard/Test accessory: IEC EN 61010-031
- Approvals: UL, CE
Content generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
