Product Overview

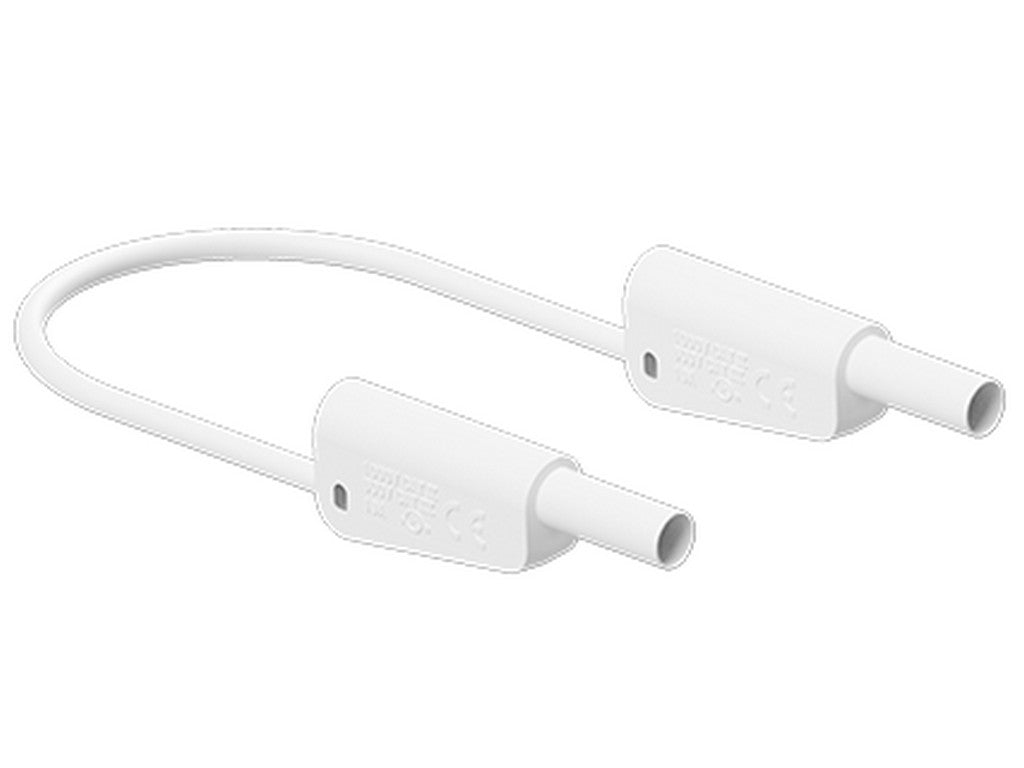

This test lead from STAUBLI, Test leads SLK-4 (type SLK-4N-F25, order/item number series 66.2014-*) is a flexible lead with stackable Ø 4 mm MULTILAM plugs and a rigid insulating sleeve at both ends. The primary function of the product is as a test lead for electrical measurement and test connections in accordance with the electrical ratings specified by the manufacturer.Design and materials
- Stackable Ø 4 mm MULTILAM plug (MULTILAM system).
- Rigid insulating sleeve mounted at both ends.
- Insulation: PVC (specified by the manufacturer).
- Wire area / conductor cross-section: 2.5 mm².
- Contact plating: nickel (Ni) plated contacts.
- High flexibility: described as "highly flexible" on the manufacturer's product page.
Electrical properties
Test leads SLK-4N-F25 are specified by the manufacturer with the following electrical values: nominal current rating 32 A and voltage categories 1000 V, CAT II and 600 V, CAT III — these values are stated directly in the Stäubli product information.Documentation
Source information and manufacturer text are available on the Stäubli product overview for SLK-4. Please refer to the manufacturer's page for the original product text and confirmed values: Stäubli product page for SLK-4Specifications
- Product name: Test leads SLK-4 (type SLK-4N-F25).
- Manufacturer: STAUBLI.
- Order/item number series: 66.2014-* (example: 66.2014-02529 indicated in input).
- Voltage categories: 1000 V, CAT II; 600 V, CAT III.
- Nominal current: 32 A.
- Conductor cross-section: 2.5 mm².
- Insulation: PVC.
- Contact plating: Nickel (Ni).
- Connector type: Stackable Ø 4 mm MULTILAM plugs.
- Functional detail: rigid insulating sleeve at both ends; high flexibility of the lead.
Content generated using AI – subject to errors.
