STAUBLI SLK-4N-F25 test lead

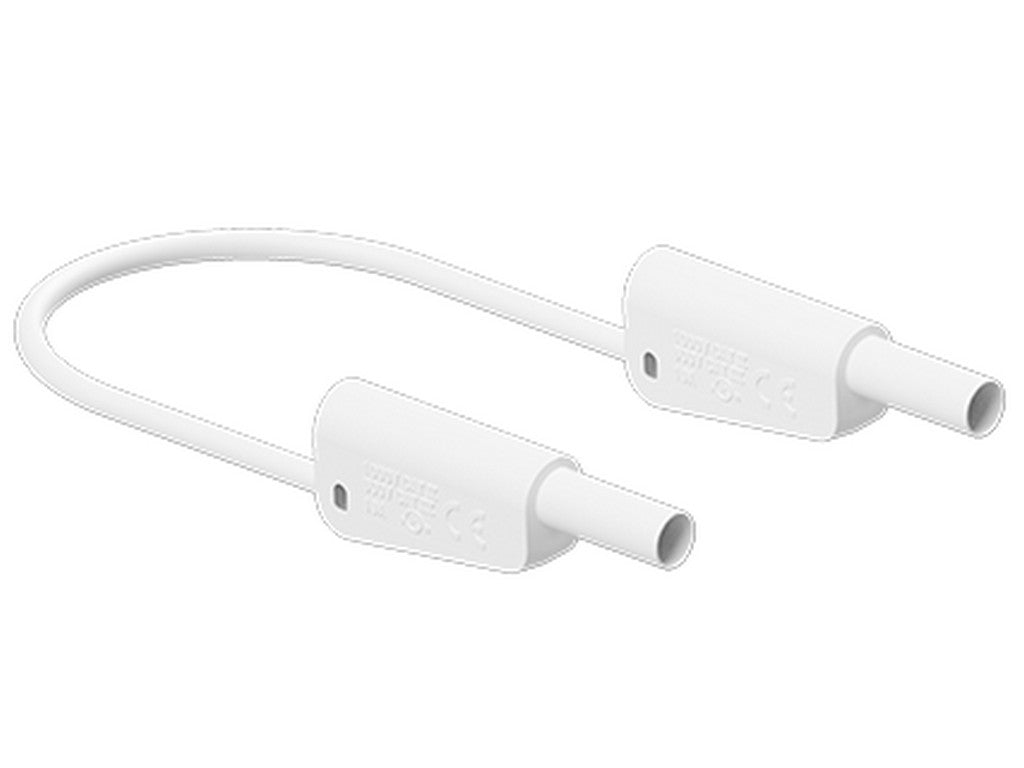

The SLK-4N-F25 is a highly flexible test lead with stackable Ø 4 mm MULTILAM plugs at both ends. It is used when secure and practical connections are needed in test setups, where there may also be a need to build multiple connections on top of each other. The rigid insulating sleeves at both ends help protect the contact parts during operation.
The cable is designed for professional measurement technology and testing work where flexibility and electrical limits are required. It is rated for 1000 V, CAT II at 32 A and 600 V, CAT III at 32 A. It is also specified as a test accessory according to IEC EN 61010-031 and is UL and CE marked.
The conductor itself has a 2.5 mm² conductor cross-section and PVC insulation. The contact material is CuZn with a nickel surface, which is a classic construction in this type of test lead where a stable and robust contact surface is desired. The length shown is 200 cm.
Typical applications
The lead naturally fits into test setups, service work, and electrical measurements where 4 mm connections and the need for stackable connections are involved.
Specifications
- Manufacturer: STAUBLI
- MPN: 66.2014-20029
- Product: SLK-4N-F25 test lead
- Plug system: Ø 4 mm
- Stackable MULTILAM plugs with rigid insulating sleeves at both ends
- Rated values: 1000 V, CAT II, 32 A / 600 V, CAT III, 32 A
- Contact material: CuZn
- Surface treatment of electrical contact: Ni
- Cable insulation: PVC
- Conductor cross-section: 2.5 mm²
- Cable length: 200 cm
- Test accessory according to IEC EN 61010-031
- Approvals: UL, CE
See datasheet from the manufacturer
