STAUBLI SLK-4N-F25 test lead

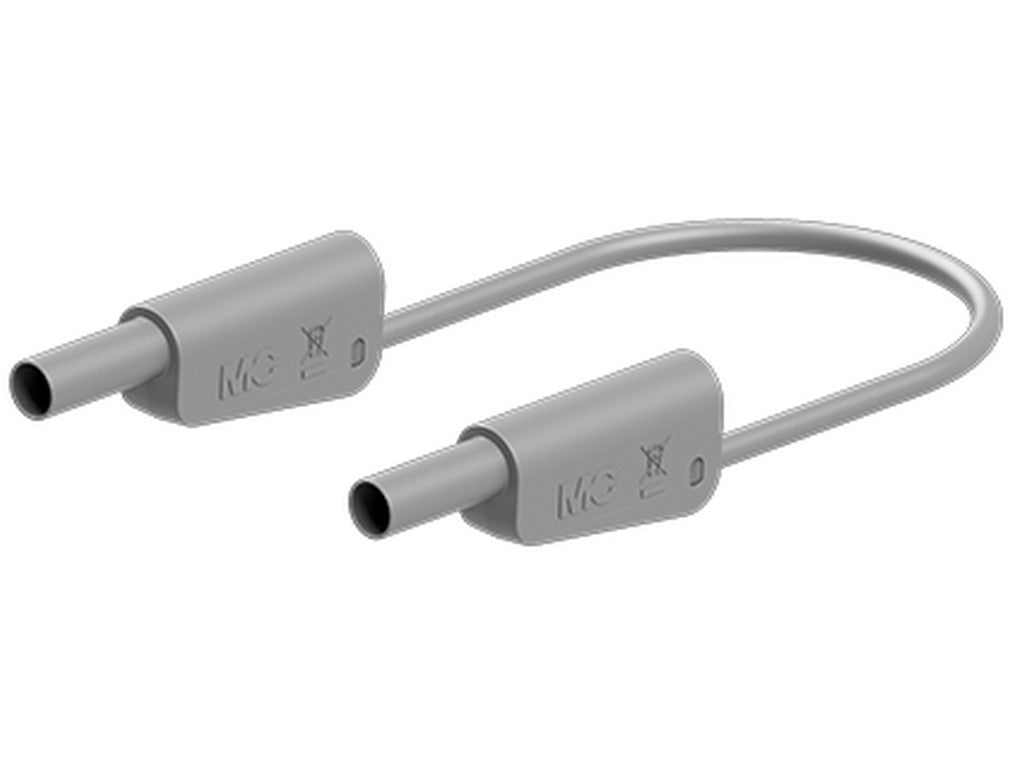

The STAUBLI SLK-4N-F25 is a highly flexible test lead with stackable Ø 4 mm MULTILAM plugs at both ends and a fixed insulating sleeve. It is used where work involves measuring equipment, test setups, and other electrical engineering where a secure and stable connection between components is required.
What particularly distinguishes the lead are its stackable 4 mm plugs. They enable multi-level connections to be built when there is a need to branch or connect measuring equipment in a practical way. The flexible design also makes the lead easier to handle in a busy test environment, where cables are often moved and reconnected many times.
The SLK-4N-F25 is rated for 1000 V CAT II / 32 A and 600 V CAT III / 32 A. The lead has PVC insulation and a conductor cross-section of 2.5 mm². The contact surface is nickel-plated, and the base material is CuZn. It is specified as an accessory for testing according to IEC EN 61010-031 and is approved with UL and CE.
The length of this version is 200 cm.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 66.2014-20028
- Model: SLK-4N-F25
- Stackable Ø 4 mm MULTILAM plugs at both ends
- Fixed insulating sleeve at both ends
- Rated values: 1000 V CAT II / 32 A
- Rated values: 600 V CAT III / 32 A
- Conductor cross-section: 2.5 mm²
- Cable insulation: PVC
- Contact surface: nickel (Ni)
- Base material: CuZn
- Cable length: 200 cm
- Standard: IEC EN 61010-031
- Approvals: UL, CE
Typical applications
Test and measurement setups in electrical engineering and electronics production, where 4 mm connections are used.
