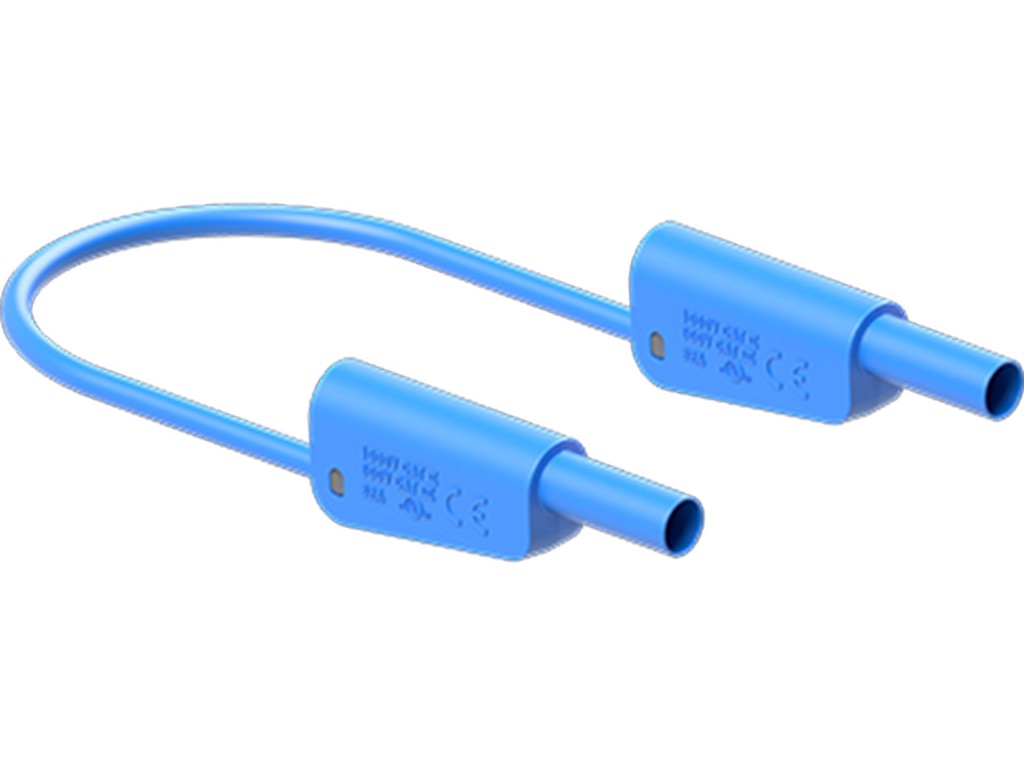

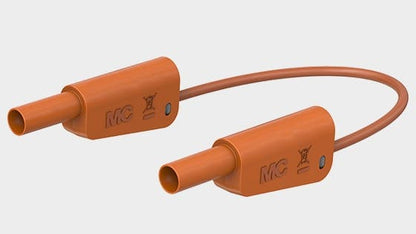

STAUBLI SLK-4N-F25
The STAUBLI SLK-4N-F25 is a highly flexible test lead for measurement and testing tasks involving 4 mm plug connections. Both ends feature stackable Ø 4 mm MULTILAM plugs with fixed insulation sleeves, making the lead suitable for setups requiring a secure and stable connection between test equipment and measurement points.
The lead is constructed with PVC insulation and has a conductor cross-section of 2.5 mm². This means it is designed for professional use in test environments where both flexibility and current capacity are required. It is rated for 1000 V, CAT II and 600 V, CAT III at 32 A, and is specified according to IEC EN 61010-031. It also has UL and CE approvals.
What makes it practical in everyday use is primarily the stackable 4 mm design. This allows for a solution that fits into common measurement systems, where multiple leads often need to be connected or a test setup needs to be extended.
Several lengths are available in the series, and this item belongs to the 66.2014-*-series.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 66.2014-20023
- Article series: SLK-4N-F25 (66.2014-*)
- 4 mm MULTILAM plug
- Stackable plugs at both ends
- Fixed insulation sleeves at both ends
- Lead cross section: 2.5 mm²
- Insulation: PVC
- Electrical contact material: CuZn
- Contact surface treatment: Ni
- Rated values: 1000 V, CAT II, 32 A / 600 V, CAT III, 32 A
- Complies with IEC EN 61010-031
- UL and CE approved
- Available lengths: 25, 50, 75, 100, 150 and 200 cm
Content generated with AI - we reserve the right for errors.
Contact HIN for further information about the product.
