STAUBLI 66.1043-20023

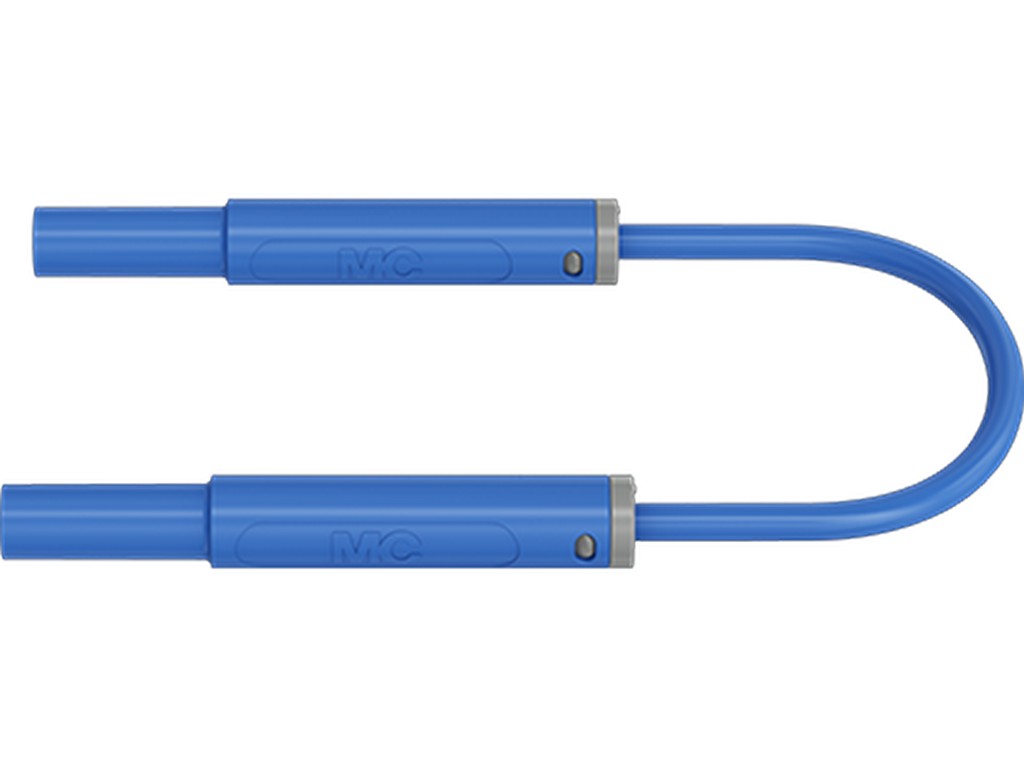

The STAUBLI 66.1043-20023 is a safety test lead for measurement and testing tasks where both flexibility and secure connection are required. The cable has overmolded Ø 4 mm MULTILAM banana plugs with rigid insulation sleeves at both ends, making it easy to use in practical test setups.
The lead is designed for professional environments within electrical engineering and test & measurement. It is built with silicone insulation, which provides a very flexible lead, and the conductor cross-section is 2.5 mm². This makes it suitable when you need a test lead that can be handled frequently and also be part of setups with safety requirements.
This is a 4 mm test system with rated values of 1000 V, CAT IV, and 32 A. In practice, this means that the lead is intended for demanding measurement tasks where the safety class must match the installation. The version is available in several lengths, and the variant specified here is 200 cm.
Stäubli states that the product is approved with UL and CE, and refers to the user information document I 144.
View datasheet from the manufacturer
Typical applications
- Testing and measurement in electrical installations
- Professional measurement setups using 4 mm connections
- Work where a flexible lead and securely insulated plugs are important
Specifications
- Manufacturer: STAUBLI
- MPN: 66.1043-20023
- Product type: safety test lead
- Plug system: 4 mm
- Connection: in-line Ø 4 mm MULTILAM plug with rigid insulation sleeve at both ends
- Rated voltage: 1000 V
- Category: CAT IV
- Rated current: 32 A
- Lead insulation: silicone (SIL)
- Conductor cross-section: 2.5 mm²
- Length: 200 cm
- Approvals: UL, CE
- User information: I 144
