STAUBLI LK-4N-S25 test leads

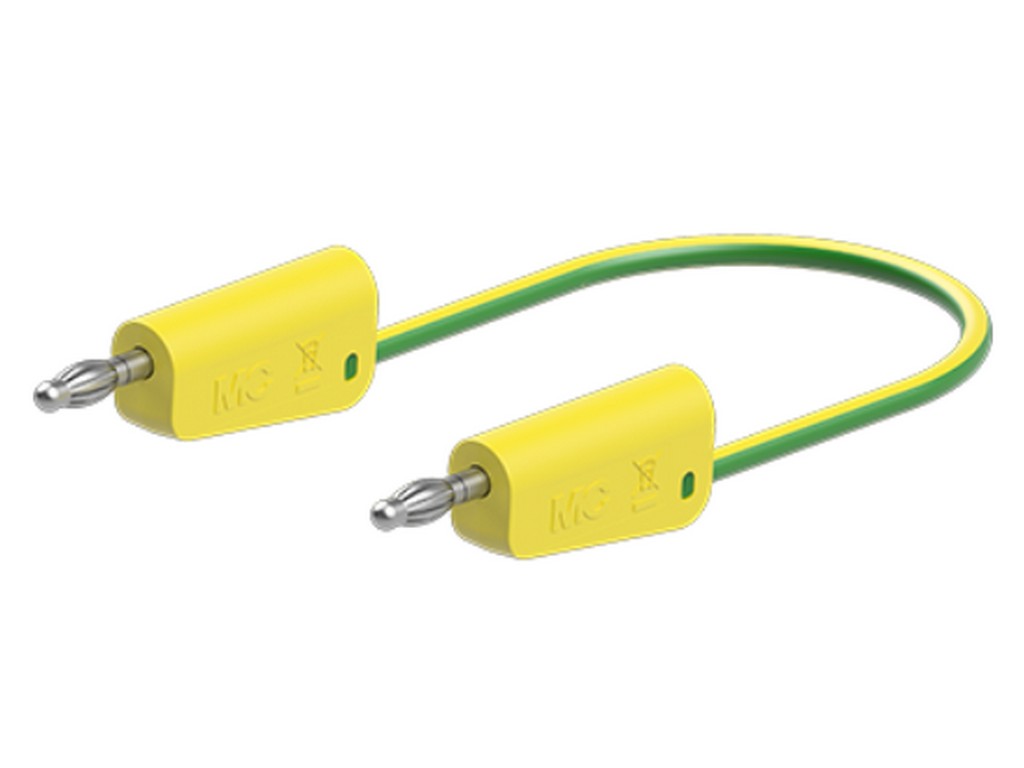

The LK-4N-S25 is a highly flexible test lead with stackable Ø 4 mm MULTILAM plugs at both ends. It is used as a measurement and connection cable in setups where a safe and practical connection between measuring equipment and test points is required.
The lead is constructed with silicone insulation, which makes it pliable to work with, even when the lead needs to be routed through a confined test environment. With a conductor cross-section of 2.5 mm² and rated values of 30 V AC / 32 A and 60 V DC / 32 A, it is designed for professional measurement tasks that demand both flexibility and electrical performance.
The stackable plugs allow multiple leads to be connected at the same point when working with test setups that need to be expandable or looped through. This solution is particularly practical on test benches and in measurement kits, where connections often need to be changed quickly.
The product is specified as test accessory according to IEC EN 61010-031, and the datasheet is dated 02.2024.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 64.1036-10020
- Product series: LK-4N-S25
- Ø 4 mm MULTILAM plugs at both ends
- Stackable plugs
- Insulation: silicone (SIL)
- Conductor cross-section: 2.5 mm²
- Rated values: 30 V AC / 32 A
- Rated values: 60 V DC / 32 A
- Contact surface: nickel (Ni)
- Contact base material: CuZn
- Cable length: 100 cm
- Test accessory according to IEC EN 61010-031
- Datasheet dated 02.2024
