Product Overview

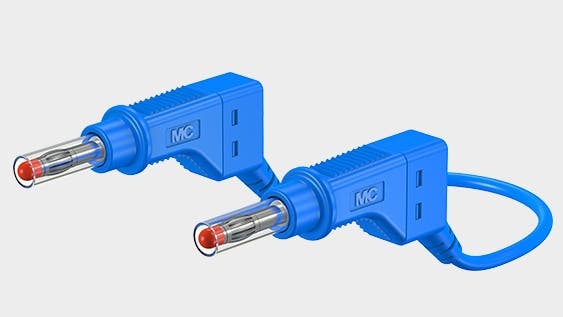

This test lead from Stäubli, Stäubli XZG425/SIL (item number 66.9408-*), is a flexible test lead with silicone (SIL) insulation. The product is described as a test accessory and comes with stackable Ø 4 mm MULTILAM plugs on both ends with a protective collar and a retractable sleeve to prevent accidental contact.Design and Function
- High flexibility with SIL insulation.
- Stackable Ø 4 mm MULTILAM plugs on both ends with protective collar and retractable sleeve.
- Listed as a test accessory according to IEC EN 61010-031.
Typical Applications
The Stäubli XZG425/SIL is particularly suitable for connecting electrical devices that are not yet equipped with safety plugs. This application is specified directly in the product documentation and is not generalized further.Documentation
Official product documentation from the manufacturer is available, describing technical data and approvals.
View datasheet from the manufacturer
Specifications
- Product name: Stäubli XZG425/SIL (item number 66.9408-*)
- Diameter of plug system: 4 mm
- Rated values: 600 V, CAT II, 32 A
- Surface treatment electrical contact: Ni
- Base material electrical contact: CuZn
- Conductor cross-section: 2.5 mm²
- Lead dimensions (available lengths): 50 cm; 100 cm; 150 cm; 200 cm
- Lead insulation: SIL (silicone)
- Test accessory according to: IEC EN 61010-031
- Approvals: CE
- Datasheet date: 02.2022
Source: Manufacturer datasheet for Stäubli XZG425/SIL (see link to datasheet above).
