Product Overview

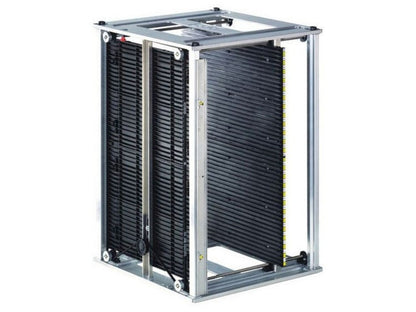

This PCB magazine from CAB, model CAB 702.2 (article number 8916702), belongs to Series 700 and is made of polycarbonate (PC). The 702.2 model is the polycarbonate variant in the 702 series and is listed on CAB's product page as part of the Series 700 magazines.Function and Mechanics
- Manual width adjustment via toothed belt.
- Safety screw to prevent unintentional adjustment.
- Transport locks mounted front and rear.
Documentation
Official manufacturer documentation is available via CAB's product catalog and technical drawings. For detailed information, please refer to the manufacturer's data sheet: View data sheet from the manufacturerTypical Applications
The CAB 702.2 magazine is used as a magazine for printed circuit boards (PCB) for handling and storage in conjunction with machines or processes where PCB magazines are used. The description of the product as a "PCB magazine" is directly stated in the manufacturer's product specification.Specifications
- Manufacturer: CAB
- Model / article number: CAB 702.2 / 8916702
- Series: Series 700
- Material: Polycarbonate (PC)

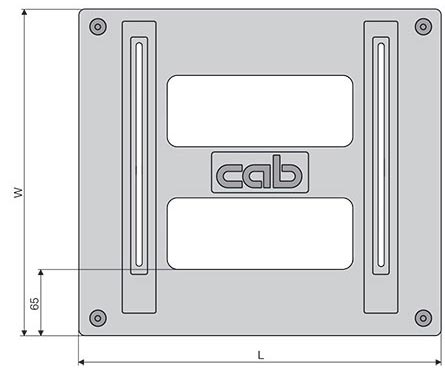

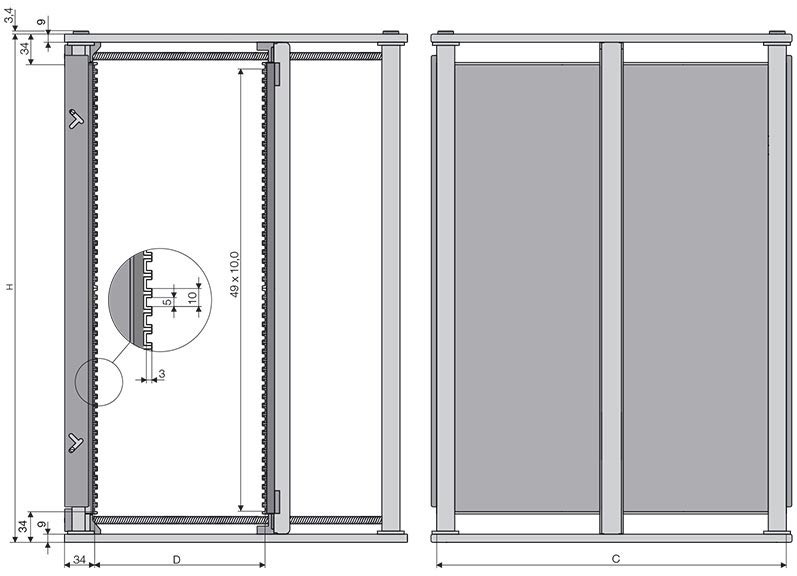

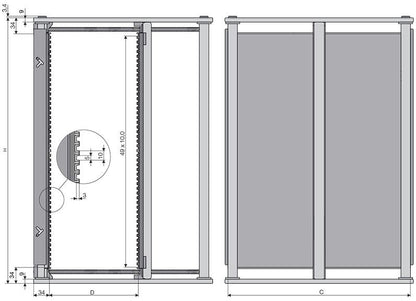

- External dimensions (W x L x H): 320 x 400 x 563 mm
- PCB width range: 40–250 mm
- Maximum PCB length: 387 mm
- Weight: 6.1 kg
- Manual width adjustment via toothed belt; safety screw prevents unintentional changes
- Transport locks front and rear
