STAUBLI 18.3703 – MES-PZ-TB9/16 crimping die

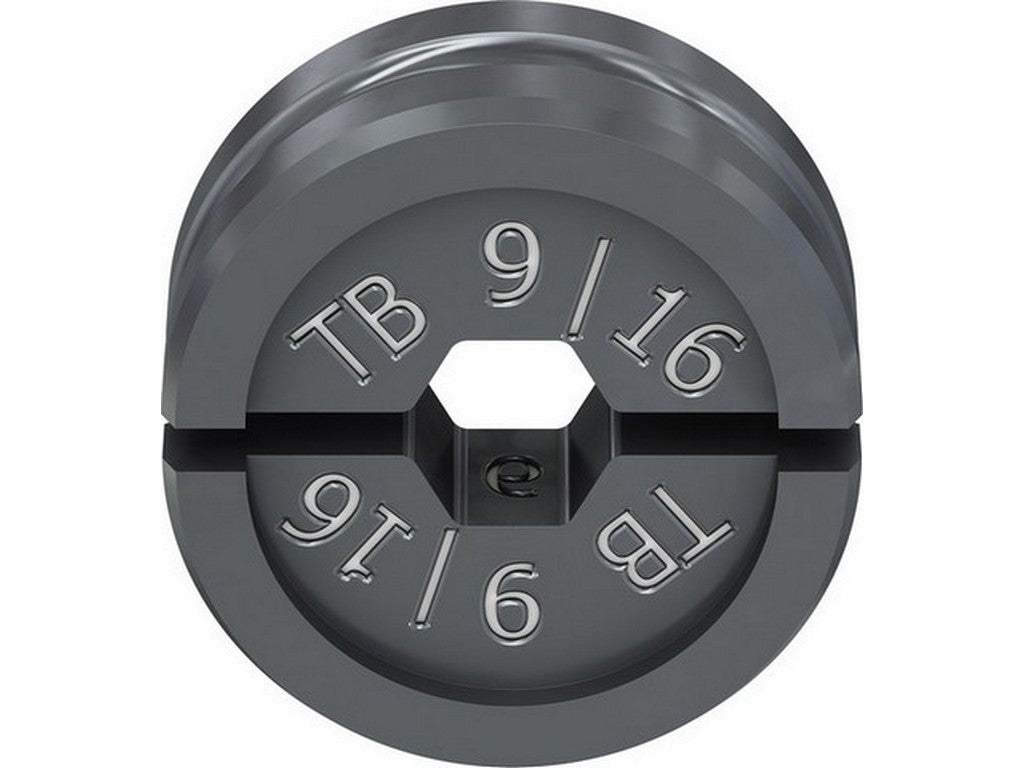

STAUBLI 18.3703 is a crimping die for the Stäubli M-PZ13 crimping tool. It is used to create a secure and uniform crimp connection on conductors with a cross-section of 16 mm². In practice, it is the part that correctly forms the connection, ensuring that cable lugs, connectors, or crimp sleeves are crimped together with the control dimension specified for this type of connection.
It is not a complete pair of pliers in itself, but a replaceable die that fits into the M-PZ13. This makes the tool flexible, as the same pliers can be used with different crimping dies depending on the task. This particular die is designed for contacts with a nominal diameter of 6 mm, meaning a control dimension X = 6 mm.
Stäubli specifies that the M-PZ13 and its associated crimping dies must be used with the parts and tools specified by the manufacturer. This is relevant in professional work, where ensuring a stable connection and adhering to the manufacturer's technical data is crucial.
Typical applications
- Crimping of copper cable lugs and connectors
- Crimping of copper tubular cable lugs and connectors
- Crimping of crimp sleeves onto plug connectors
Specifications
- Manufacturer: STAUBLI
- MPN: 18.3703
- Designation: MES-PZ-TB9/16
- For use with: Stäubli M-PZ13 crimping tool
- Conductor cross-section: 16 mm²
- Control dimension X: 6 mm
- Official datasheet from the manufacturer: View datasheet from manufacturer
