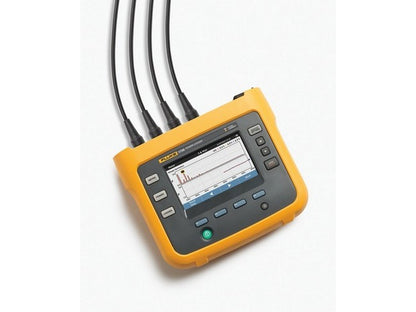

• Poweranalysator 3-fase Fluke 1736 EUS version med tilsluttede kabler

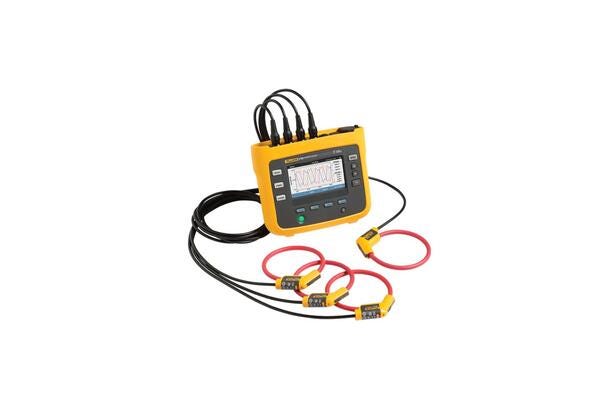

  • Poweranalysator 3-fase EUS version med strømtænger og kabler

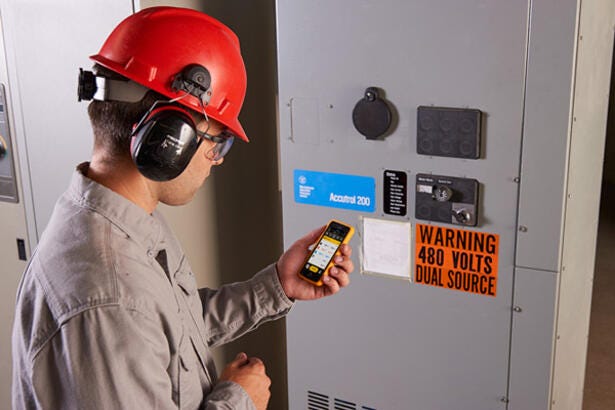

  • En tekniker måler elektriske parametre med en gul Fluke poweranalysator

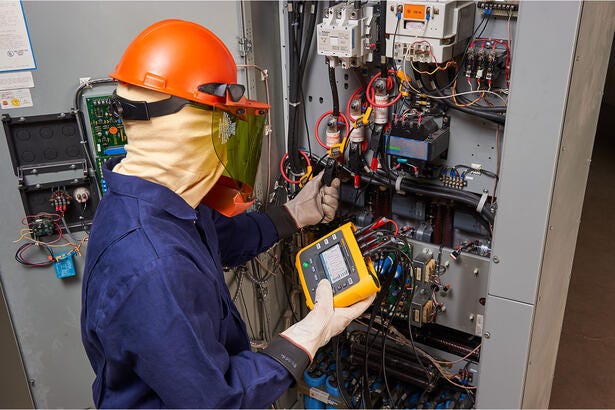

  • Elektriker med sikkerhedsudstyr bruger Fluke 1736 til at måle spænding og strøm i en eltavle

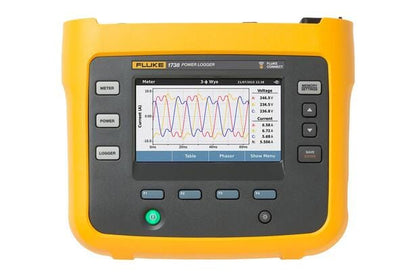

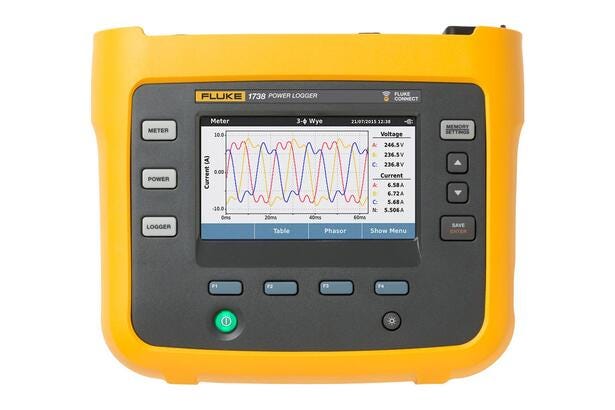

  • Poweranalysator 3-fase med skærmvisning af spænding, strøm og frekvensbølgeformer
1 5

Power analyzer 3-phase EUS version

Power analyzer 3-phase EUS version

Fluke

FLUKE-1736EUS

In stock

View full details

You are not logged in and therefore do not see your prices.

Have an account and login
Don't have an account?Have an account

Product Overview

This portable three-phase power logger from FLUKE, Fluke 1736/EUS (Part#: 4534519), is a measuring instrument for automatically collecting and logging electrical parameters. The instrument records voltage, current, power, harmonics, and related power quality values (over 500 parameters) and can capture voltage events and inrush currents with waveform snapshots.

Documentation

View manufacturer datasheet

Equipment and Accessories

  • EU/US kit includes four 12 in 1,500 A flexible i17xx-current probes.
  • Included accessories: voltage test leads, alligator clips, Energy Analyze Plus software, Wi‑Fi/BLE adapter, and soft case.
  • Data transfer: USB, USB flash drive, or Wi‑Fi adapter; compatible with Fluke Connect mobile app and desktop software.

Typical Applications

  • Conduct energy studies and load analyses by logging voltage, current, and power over time.
  • Diagnose harmonic disturbances by measuring total harmonic distortions and individual harmonics up to high orders.
  • Record voltage events and inrush/start currents at predefined thresholds with waveform snapshots.

Technical Functionality

The Fluke 1736/EUS accepts up to 1000 Vrms on voltage inputs and provides current measurement via i17xx-flex probes. The instrument automatically records a large set of power quality parameters and offers real-time display and local analysis on the instrument's screen, as well as remote access via Wi‑Fi and Fluke Connect.

Specifications

  • Product: Fluke 1736/EUS
  • Manufacturer: FLUKE
  • Manufacturer Part Number: 4534519
  • Type: Portable three-phase power logger
  • Recorded parameters: Voltage, current, power, harmonics, and related power quality values (over 500 parameters)
  • Included current probes: 4 × 12 in 1,500 A flexible i17xx-probes
  • Maximum voltage input: Up to 1000 Vrms
  • Safety rating: 600 V CAT IV / 1000 V CAT III
  • Data transfer: USB, USB flash drive, Wi‑Fi adapter
  • Included software: Energy Analyze Plus

Content generated using AI – we reserve the right for errors.
Contact HIN for further product information.
