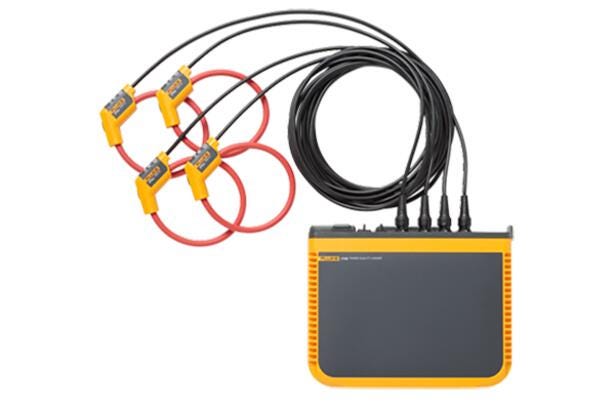

• Power Quality logger med iFlex prober og alligator clips

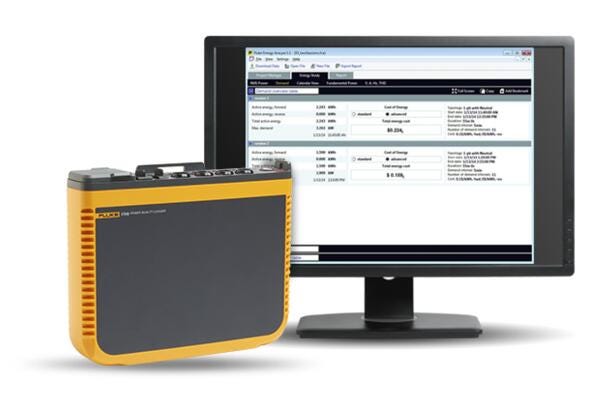

  • Power Quality logger og skærm med energianalysesoftware

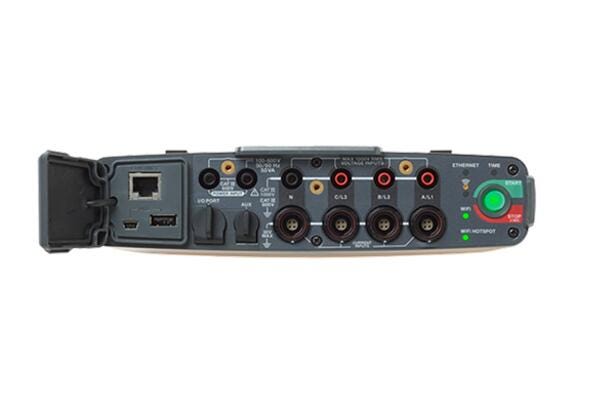

  • Fluke 1746/30/EUS power quality logger bagside med porte

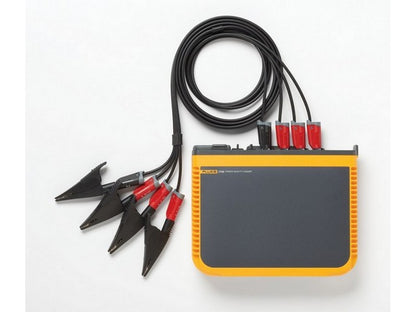

  • Power Quality logger m IFlex prober 3000A

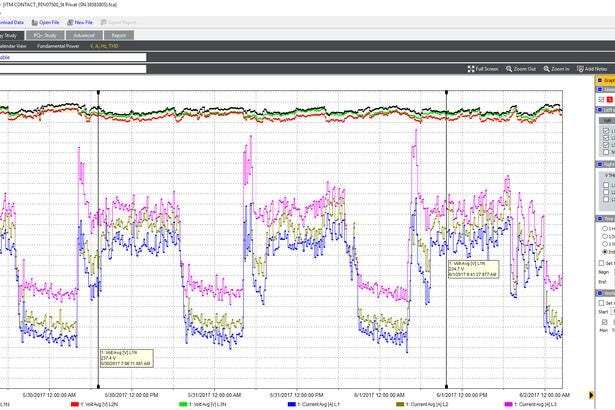

  • Power Quality logger med grafer over spænding og strøm fra Fluke 1746
1 5

Power Quality logger w/IFlex probe 3000A

Power Quality logger w/IFlex probe 3000A

Fluke

FLUKE-1746-30EUS

In stock

View full details

You are not logged in and therefore do not see your prices.

Have an account and login
Don't have an account?Have an account

Product Overview

The Fluke 1746/30/EUS is a three-phase power quality logger from FLUKE (MPN 4920715). The device is designed for documenting and analyzing power and voltage quality, with the ability to log relevant parameters over long periods. The Fluke 1746/30/EUS comes with four flexible iFlex current sensors (24 in / 60 cm) specified for 3000 A.

Functionality

  • Logs measurement data for voltage and current, including harmonics and interharmonics.
  • Detects unbalance, flicker, and rapid voltage changes (dips, swells, and interruptions).
  • Supports wired Ethernet, WiFi, and two external USB ports for data transfer and direct download.
  • Includes Fluke Energy Analyze Plus software for download, analysis, and one-click reporting.

Documentation

See additional technical details in the manufacturer's datasheet: See datasheet from manufacturer

Typical Applications

  • Troubleshooting power and voltage disturbances based on logged parameters.
  • Quantifying energy consumption and recording trends via stored session data.
  • Conducting survey studies of service quality using standardized measurement parameters.

Notes on Measurements

The stated functionality and measured parameters (harmonics, interharmonics, unbalance, flicker, and rapid voltage changes) are documented by the manufacturer and specified in the accompanying technical material. For details on accuracy, measurement intervals, and additional hardware features, please refer to the manufacturer's datasheet.

Specifications

  • Product Name: Fluke 1746/30/EUS
  • Manufacturer: FLUKE
  • Manufacturer Part Number: 4920715
  • Type: Three-phase power quality logger
  • Comes with: Four 24 in (60 cm) iFlex current sensors, 3000 A
  • Measured Parameters: Harmonics and interharmonics (voltage and current), unbalance, flicker, rapid voltage changes
  • Standard Compliance: IEC 61000-4-30 Class A Edition 3
  • Connection/Data Transfer: Wired Ethernet, WiFi, two external USB ports
  • Software: Includes Fluke Energy Analyze Plus for download, analysis, and reporting
  • Storage: Can store more than 20 separate logging sessions

Content generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
