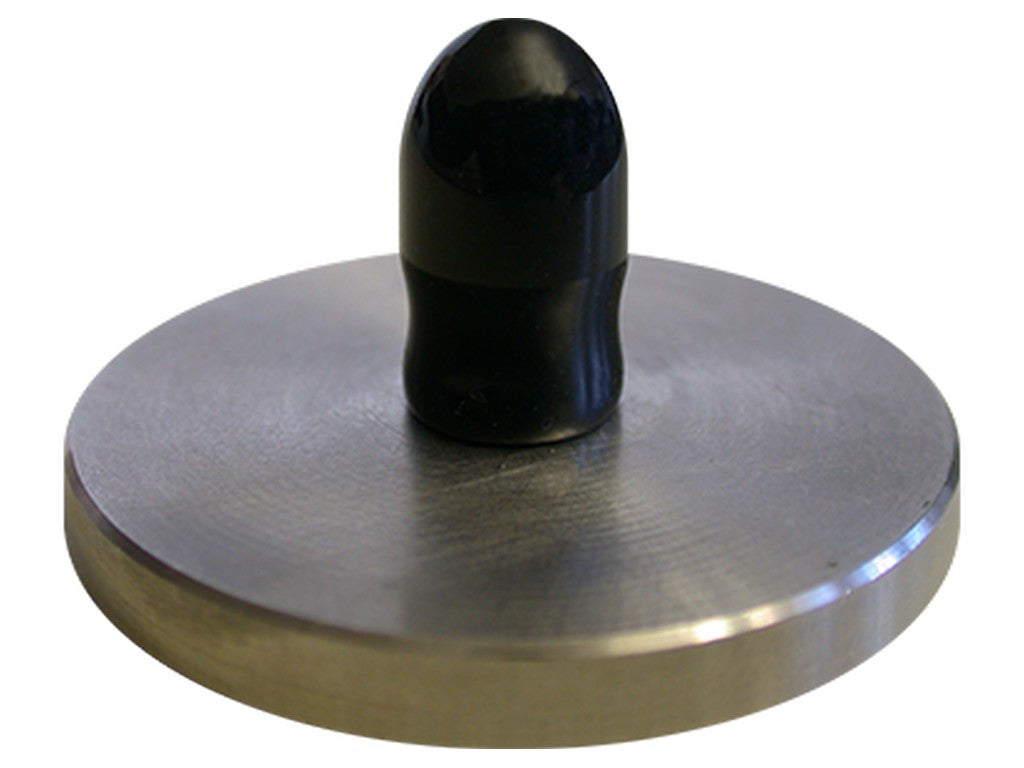

STAUBLI 33.3023 Polishing disc CT-PS/POF
STAUBLI 33.3023 is a polishing disc for preparing POF cables, i.e., Plastic Optical Fibre. It is used when the cable end needs to be sanded and polished, so that the end face is ready for further assembly into Stäubli CombiTac uniq POF connectors.
During the process, the POF cable is placed in the polishing disc so that it protrudes approximately 0.5 mm. Then, the cable end is polished with 1000-grit sandpaper, which must be moistened with water. This is a simple but important part of the preparation because the quality of the cable end affects the subsequent assembly.
The recommended cable type is POF with an outer diameter of 2.2 mm and a fiber diameter of 1 mm. In practice, the polishing disc is therefore included as a tool in the standard preparation process when POF cables need to be correctly installed.
See datasheet from the manufacturer
Typical applications
The polishing disc is used for preparing POF cables before assembly into Stäubli POF connectors, where the cable end must first be shortened, sanded, and polished before the connector is mounted.
Specifications
- Manufacturer: STAUBLI
- MPN: 33.3023
- Product name: Polishing disc CT-PS/POF
- For POF cable (Plastic Optical Fibre)
- Recommended cable type: POF with outer diameter 2.2 mm and fiber diameter 1 mm
- The cable must protrude approx. 0.5 mm into the polishing disc during preparation
- Polishing is performed with 1000-grit sandpaper
- The polishing paper must be moistened with water during work
- Sandpaper is not included
