Product Overview
Description

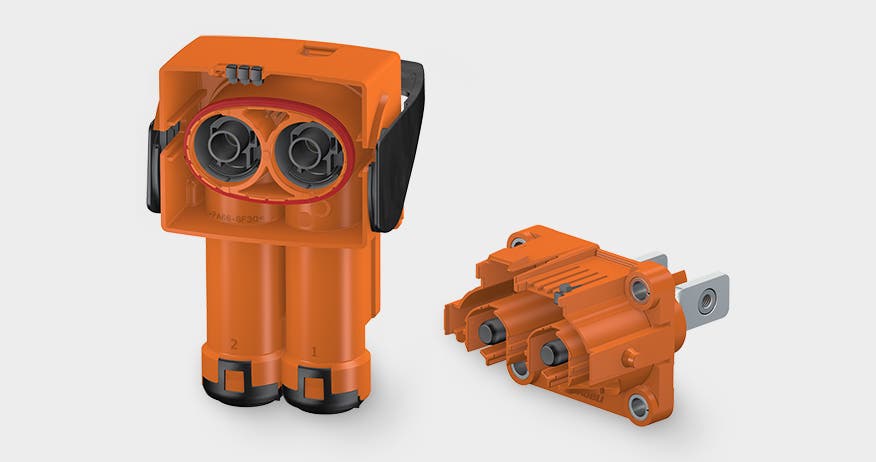

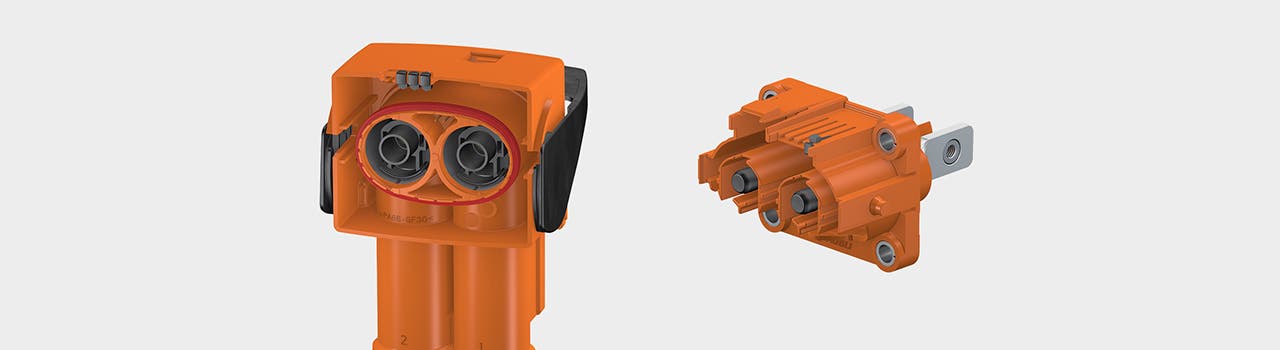

PerforMore is a two-pole high-voltage connector system from STAUBLI. The part number 15.5420 is listed in the PerforMore catalog as PM-HVIL-B1-2CR0/25-0.75 and is described as a PerforMore HVIL socket shown under the plug-side spare parts. The product uses a Ø10 mm contact geometry and Stäubli MULTILAM contact technology.Technical Specifications
- Ø10 mm contact design with MULTILAM contact technology
- Specified continuous current up to 600 A (depending on ambient temperature)
- Rated voltage: DC 1000 V
- Protection class in mated condition: IP68 and IP6K9K (in mated state)
- Supported conductor cross-sections: 50 mm², 70 mm², and 95 mm² (according to LV-216-2)
Documentation
See manufacturer's datasheetTypical Applications
PerforMore is used in on-board high-voltage applications for electric powertrains and is listed in the manufacturer's documentation as suitable for high-performance vehicles, commercial vehicles, and mobile machinery. The catalog mentions specific applications such as:- High-power charging systems (HPC)
- High-voltage batteries
- Inverters and high-voltage distribution units (HVDU)
Design and Safety Features
- Two-stage HVIL locking system, where HVIL is interrupted in the first stage and live contacts are only disconnected in the second stage
- 360° EMC shielding with multiple contact points for shielding effectiveness
- Vibration tested and specified for high operating temperatures in manufacturer's documentation
Specifications
- Manufacturer: STAUBLI
- Manufacturer part number: 15.5420 (PM-HVIL-B1-2CR0/25-0.75)
- Product type: PerforMore HVIL socket (two-pole high-voltage connector)
- Contact diameter: Ø10 mm
- Contact technology: MULTILAM
- Continuous rated current: up to 600 A (depending on ambient temperature)
- Rated voltage: DC 1000 V
- Supported conductor cross-sections: 50 / 70 / 95 mm² (LV-216-2)
- Protection degree, mated: IP68, IP6K9K; unmated: IP2X
- Test voltage: AC 4260 V, 1 min / 50 Hz
- Connection types (socket): Crimp and weld connection
